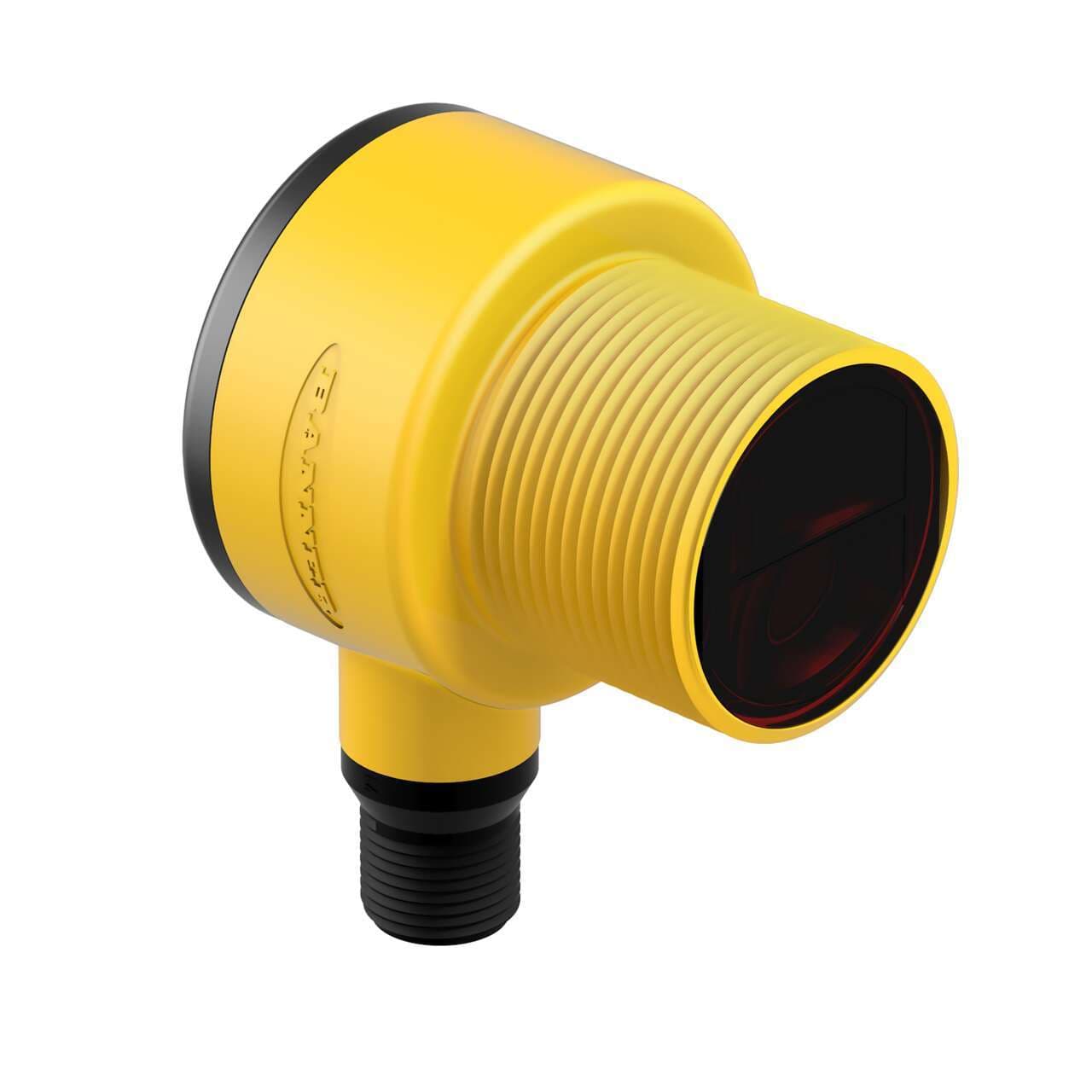

T30AW3FF200Q1 Banner Proximity Sensors
Part#:T30AW3FF200Q1
Alt. Part#:33430
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Fixed Field; Range: 200 mm; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 4-pin Micro Integral QD
Product Details
- Weight 99.79024 g
- Country Of Origin US
- Sub-range name T30 series
- Light Color Infrared (IR)
- Shape Cylindrical threaded/barrel
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Wavelength 880 nm
- Operating mode Light-ON
- Order code / Manufacturer SKU 33430
- Product series / family name EZ-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Response time 16ms / 0.016 s
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Compliant with standard(s) cULus cCSAus CE
- Design background suppression system
- Thread size M30
- Material thermoplastic housing
- Main function Sensor (Photo-electric)
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Sensing distance 200mm
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Degree of protection IP69K NEMA 6P
- Sensing Mode (General) Proximity
- Quick Disconnect Type 1/2 in. (Micro)
- Delay at Power-up (ms) 100
- Indicator LEDs
- IO Link No
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Input/Output Solid-State AC Switch
- Min Op. Temp. (°C) -40
- Repeatability (µs) 4000
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Max Sensing Distance (mm) 200
- Connection Integral QD
- IP Rating IP69
- Feature: Washdown Rated Yes
- Sensing Beam Infrared LED
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Feature: Chemical Resistant No
- Outputs Solid-State AC Switch
- Output response time (ms) 16
- Adjustments N/A
- Feature: Audible No
- Power AC
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Housing Style Barrel
- Operation Light Operate
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Ecolab Certified Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30AW3FF200Q1 on Powermatic Associates is $165.00. Order now.
About the product
Banner Engineering T30AW3FF200Q1 is a fixed-field photo-electric sensor from the T30 series, designed with a background suppression system. It features a thermoplastic housing and is pre-equipped with a 4-pin 1/2" micro connector for connectivity. This sensor operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP69K NEMA 6P, making it suitable for demanding environments. The sensor has an M30 cylindrical threaded/barrel shape, includes 1 x digital output (Solid-state AC output; SPST contact type), and provides a sensing distance of 200mm. It utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 16ms / 0.016 s. The operating mode is Light-ON, and it features an M30 thread size.
