TL30BGYRXXAXC1 Banner Signal Towers
Part#:TL30BGYRXXAXC1
Alt. Part#:805407
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Yellow Red; 1.2 m (4 ft) Integral Cable
Product Details
- Weight 17.690088 g
- Country Of Origin MX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Yellow
- Input Type Bimodal (PNP/NPN)
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Product Size (mm) 30
- Lumens Color 1 7.5
- Supply Voltage 12-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect No
- Color Technology Standard LED
- Power DC
- Color Option 3 Red
- Audible Operating Frequency (kHz) 2.8
- Primary Housing Color Black
- Indication Yes
- Connection Cable
- Max Current Color (mA) 40
- NEMA Type and UL Type Rating UL 4X
- Multi-Color Device Simultaneous Colors On
- Mounting Thread M22 x 1.5
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Max Audible Intensity (db at 1m) 90
- Storage Temp (°C) -40 to 70
- Number of Colors / Segments 3
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Audible Alarm Type Continuous
- Max Op. Temperature (°C) 50
- IO Link No
- Power Source DC
- Number of Tower Light Segments 3
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 190.6
- Feature: Audible Yes
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Number of Input Pins/Conductors 5
- Environmental Rating IP65
- Feature: Chemical Resistant No
- Lumens Color 2 6.5
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Tower
- Animation Option 1 Solid On
- Lumens Color 3 2.5
- Max Current - Audible Alarm (mA) 20
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL30BGYRXXAXC1 on Powermatic Associates is $152.00. Order now.
About the product

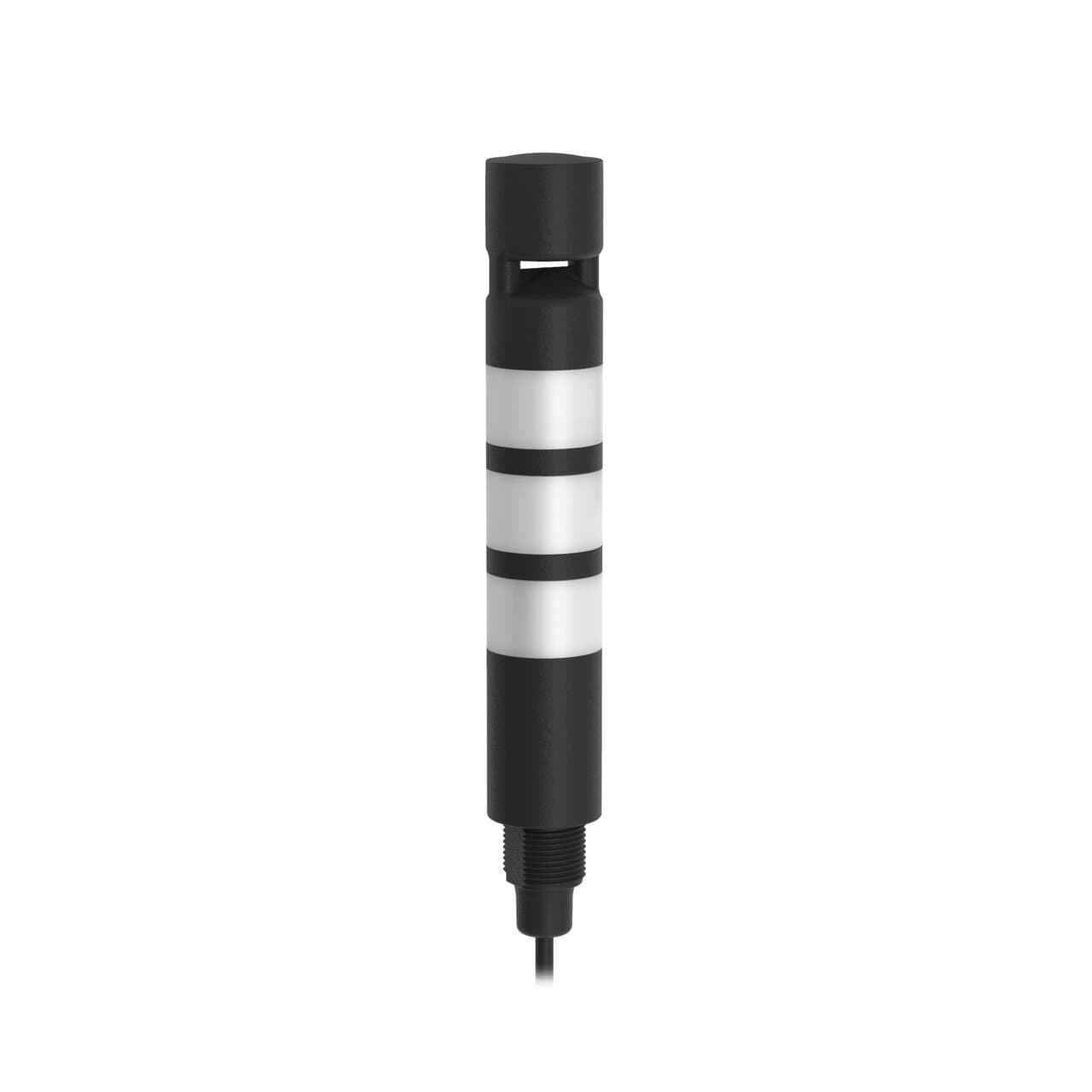

Banner Engineering TL30BGYRXXAXC1 is a tower light from the Basic series, featuring a monolithic design with continuous sound and 3-tiers of 3-color (Green, Yellow, Red) LED illumination. It is equipped with audible tower/stack light functions and constructed with a polycarbonate (PC) diffused window and base. This model has a diameter of 30mm / 1-3/16" and comes pre-wired with a 1.2m / 3.9ft. 5-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nominal). It offers surface or base pole mounting options with an M22 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. The TL30BGYRXXAXC1 is designed with an IP65 UL type 4X degree of protection, has a cylindrical shape, and consumes 40mA of current. It also features 3 x digital inputs for color control and 1 x digital input for alarm input, all supporting 12-30Vdc; NPN/PNP.
