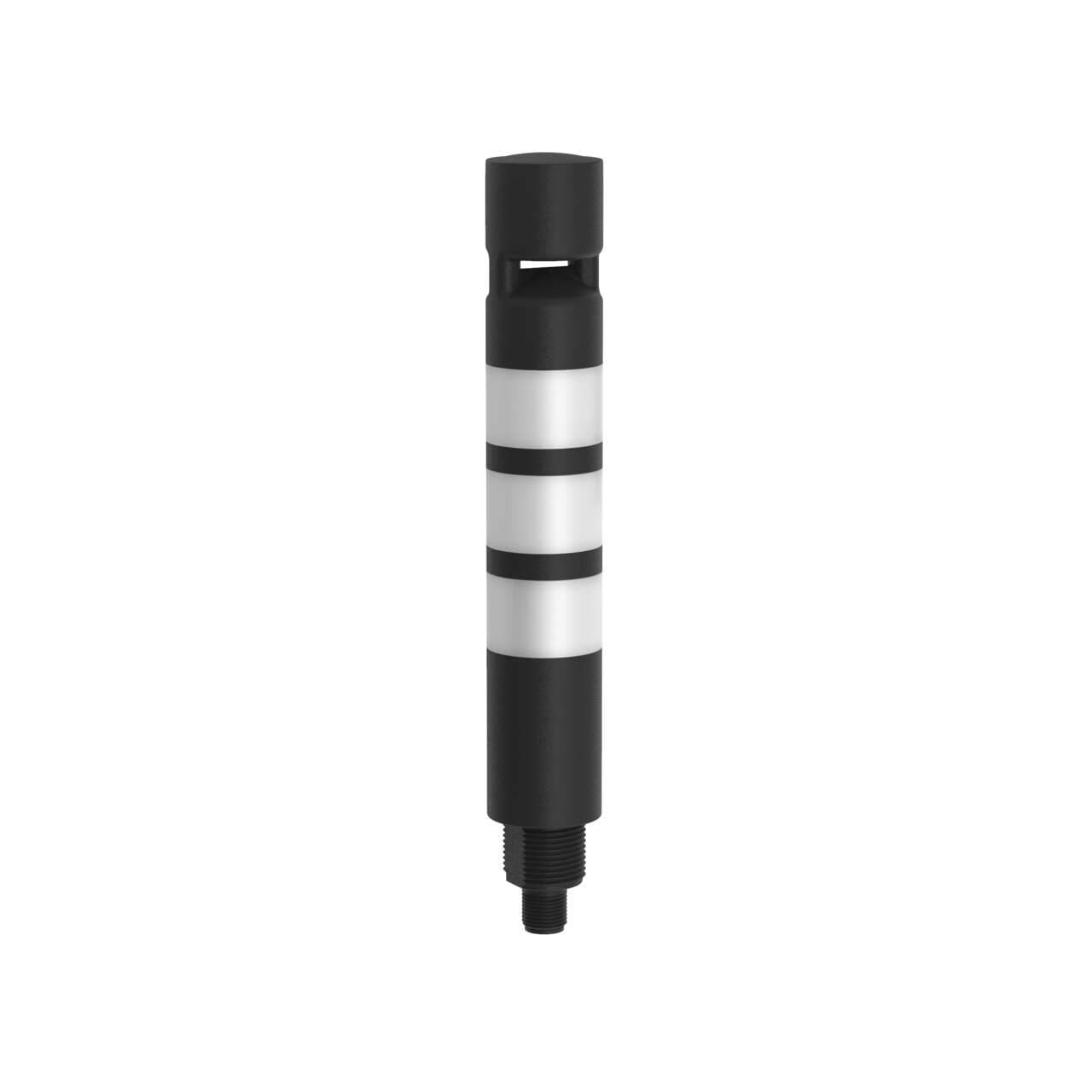

TL30BRWGXXAXQD Banner Signal Towers

Product Details

• Weight
  15.422128 g
• Country Of Origin
  US
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Quick Disconnect Type
  M12 (Euro)
• Supply Voltage
  12-30 V dc
• NEMA Type and UL Type Rating
  UL 4X
• Housing Style
  Base Mount - Tower
• Product Size (mm)
  30
• Color 2 - Wavelength/Color Temp/Coordinates
  5500K
• Audible Alarm Type
  Continuous
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Number of Colors / Segments
  3
• Color Option 2
  White
• Environmental Rating
  IP65
• Feature: Hazardous Area
  No
• Mounting Thread
  M22 x 1.5
• Lumens Color 1
  2.5
• Color Option 3
  Green
• Audible Operating Frequency (kHz)
  2.8
• Cable Length (m)
  2
Number of Tower Light Segments
4
Max Current Color (mA)
40
Physical Dimensions (LxWxH or DxH mm)
30.0 x 203.6
Indication
Yes
Color Technology
Standard LED
Color 1 - Wavelength/Color Temp/Coordinates
620 nm
Number of Input Pins/Conductors
5
Power
DC
Animation Option 1
Solid On
Lumens Color 2
7.5
Input Type
Bimodal (PNP/NPN)
Storage Temp (°C)
-40 to 70
Power Source
DC
Color Option 1
Red
Lumens Color 3
7.5
Max Audible Intensity (db at 1m)
90
Feature: Audible
Yes
Primary Housing Material
Polycarbonate
Connection
Integral QD
Color 3 - Wavelength/Color Temp/Coordinates
525 nm
Primary Housing Color
Black
Modbus RTU
No
Max Op. Temperature (°C)
50
Feature: Quick Disconnect
Yes
Max Current - Audible Alarm (mA)
20
Wireless
No
IO Link
No
Min Op. Temperature (°C)
-40
Multi-Color Device
Simultaneous Colors On
Feature: Chemical Resistant
No
Pro-Editor Compatible (Discrete)
No
Max Input Response Time (ms)
1
Primary Window Material
Polycarbonate Diffused
