TL30BGRBXXNXQD Banner Signal Towers
Part#:TL30BGRBXXNXQD
Alt. Part#:805382
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL30 Basic Tower Light; Black Housing: 3-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Red Blue; 5-pin M12 Integral QD
Product Details
- Weight 12.246984 g
- Country Of Origin MX
- Product Size (mm) 30
- Animation Option 1 Solid On
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Color Option 2 Red
- Supply Voltage 12-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Indication Yes
- Mounting Thread M22 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 5
- Min Op. Temperature (°C) -40
- Primary Window Material Polycarbonate Diffused
- Number of Colors / Segments 3
- Color Technology Standard LED
- Lumens Color 2 2.5
- Environmental Rating IP65
- Feature: Quick Disconnect Yes
- Housing Style Base Mount - Tower
- Lumens Color 1 7.5
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 157.7
- Power Source DC
- Connection Integral QD
- Color Option 3 Blue
- NEMA Type and UL Type Rating UL 4X, 13
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Green
- Lumens Color 3 2.0
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Power DC
- Number of Tower Light Segments 3
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Max Input Response Time (ms) 1
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 40
- Max Op. Temperature (°C) 50
- IO Link No
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Feature: Audible No
- Multi-Color Device Simultaneous Colors On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL30BGRBXXNXQD on Powermatic Associates is $113.00. Order now.
About the product

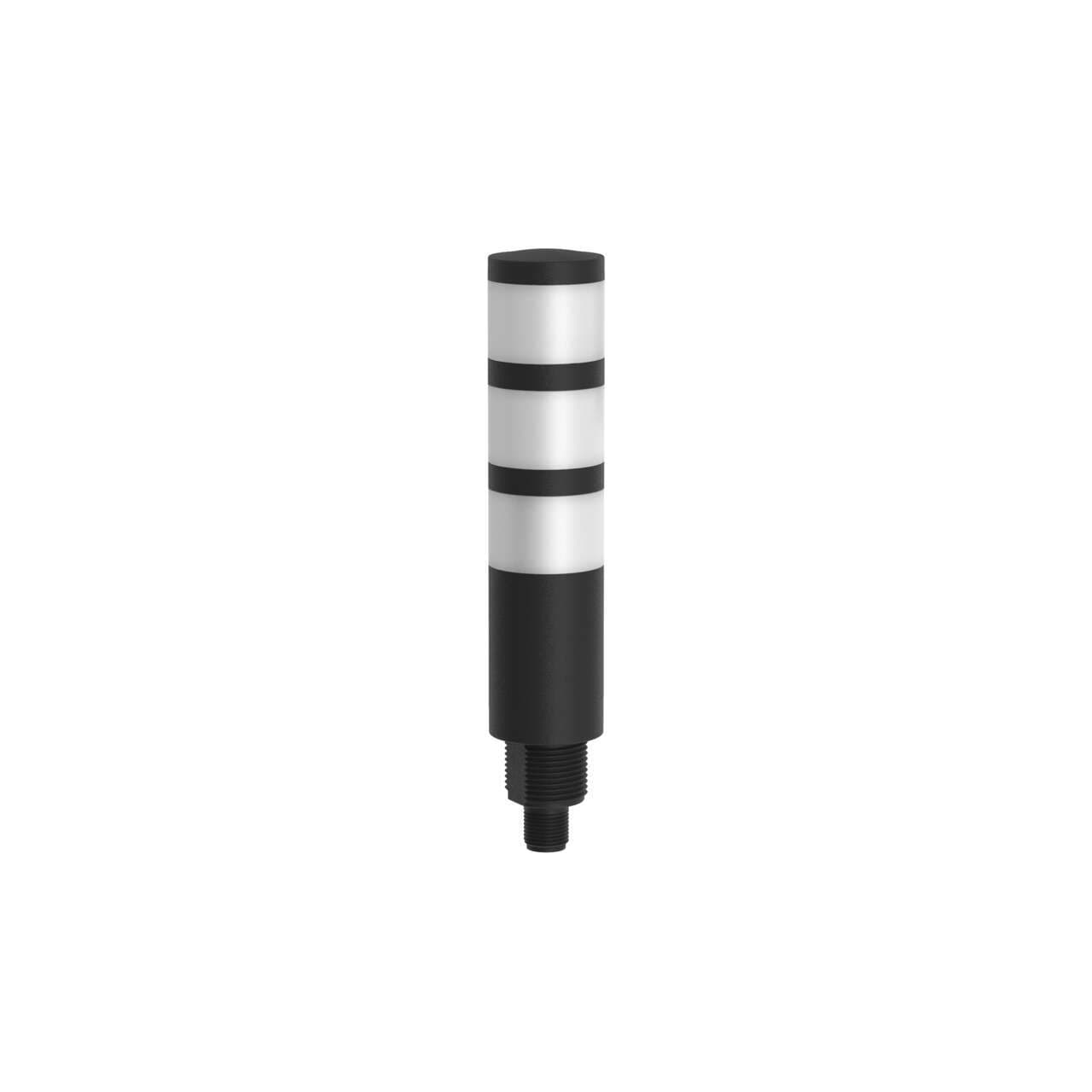

Banner Engineering TL30BGRBXXNXQD is a tower light from the Basic series, designed with a 3-tier, 3-color (Green, Red, Blue) LED illumination pattern. This monolithic tower light features a polycarbonate diffused window and base, with a diameter of 30mm / 1-3/16". It is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The housing color is black, and it operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc being nominal. The TL30BGRBXXNXQD can be mounted via surface or base pole with an M22 thread and is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection rated at IP65, UL type 4X, and UL type 13, ensuring durability in various environmental conditions. The shape of the light is cylindrical, and it has a current consumption of 40mA. Additionally, it features 3 digital inputs (12-30Vdc; NPN/PNP) for color control.
