TL30BWYGXXAXC1 Banner Signal Towers
Part#:TL30BWYGXXAXC1
Alt. Part#:808195
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description

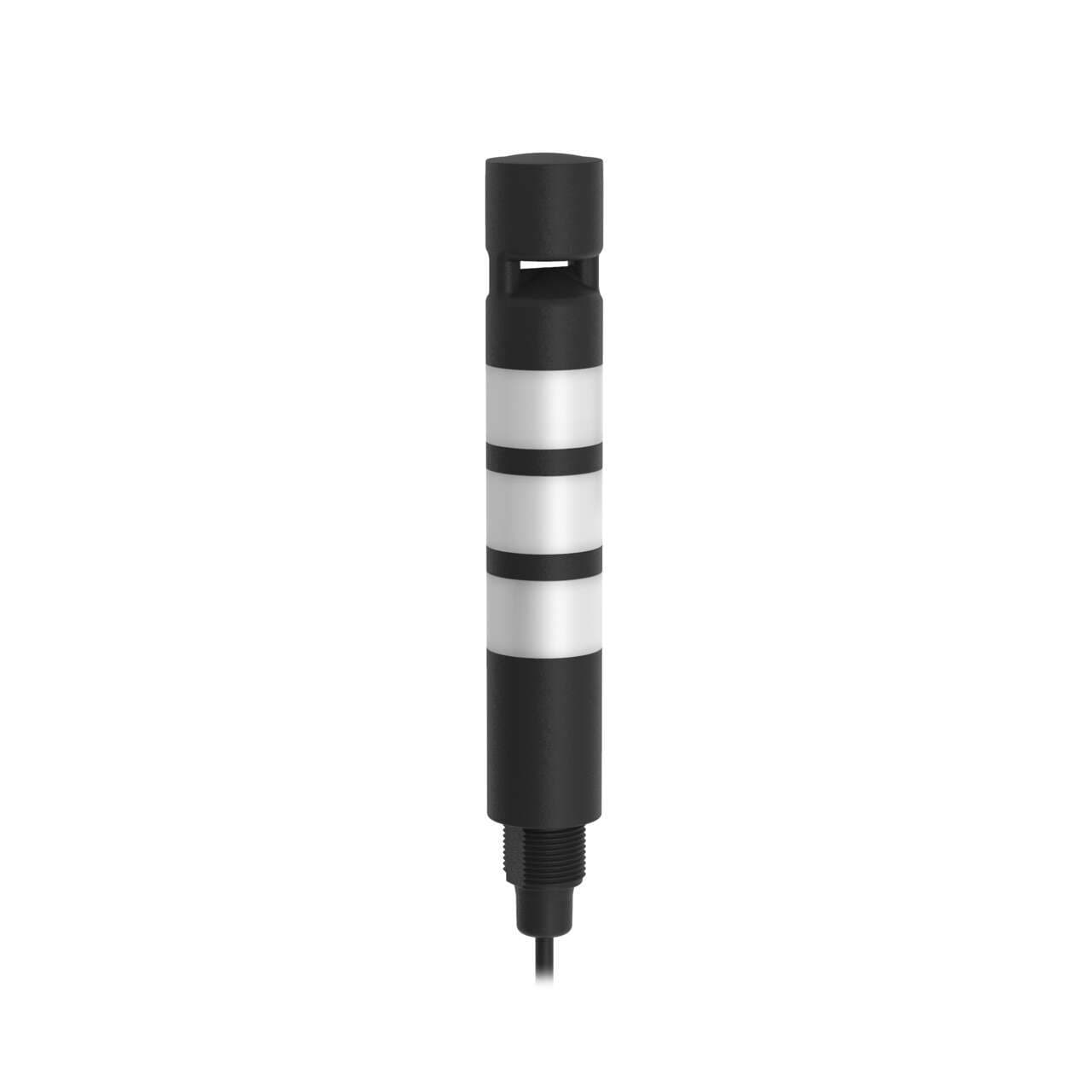

TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: White Yellow Green; 1.2 m (4 ft) Integral Cable
Product Details
- Weight 18.14368 g
- Country Of Origin US
- Mounting Thread M22 x 1.5
- Indication Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Housing Style Base Mount - Tower
- Power DC
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Product Size (mm) 30
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Environmental Rating IP65
- Number of Colors / Segments 3
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Max Audible Intensity (db at 1m) 90
- Power Source DC
- Number of Tower Light Segments 4
- Supply Voltage 12-30 V dc
- Audible Operating Frequency (kHz) 2.8
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Max Current - Audible Alarm (mA) 20
- Primary Window Material Polycarbonate Diffused
- Max Current Color (mA) 40
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Wireless No
- Lumens Color 1 7.5
- Lumens Color 3 7.5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect No
- Color Option 2 Yellow
- Audible Alarm Type Continuous
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 190.6
- Feature: Audible Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5500K
- Input Type Bimodal (PNP/NPN)
- Multi-Color Device Simultaneous Colors On
- Lumens Color 2 6.5
- Color Option 3 Green
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Connection Cable
- Color 3 - Wavelength/Color Temp/Coordinates 525 nm
- NEMA Type and UL Type Rating UL 4X
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TL30BWYGXXAXC1 on Powermatic Associates is $152.00. Order now.
About the product
Banner Engineering TL30BWYGXXAXC1 is a tower light from the Basic series featuring a monolithic design with continuous sound and 3-tiers of 3-color W+Y+G color pattern LED illumination. This audible tower/stack light has a polycarbonate (PC) base and segments, with a diameter of 30mm / 1-3/16" and is pre-wired with a 1.2m / 3.9ft. 5-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers surface or base pole mounting with an M22 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. This model is rated IP65 UL type 4X, ensuring protection against dust and water ingress. It has a cylindrical shape, consumes 40mA of current, and includes 3 x digital inputs (12-30Vdc; NPN/PNP) for color control and 1 x digital input (12-30Vdc; NPN/PNP) for alarm input.
