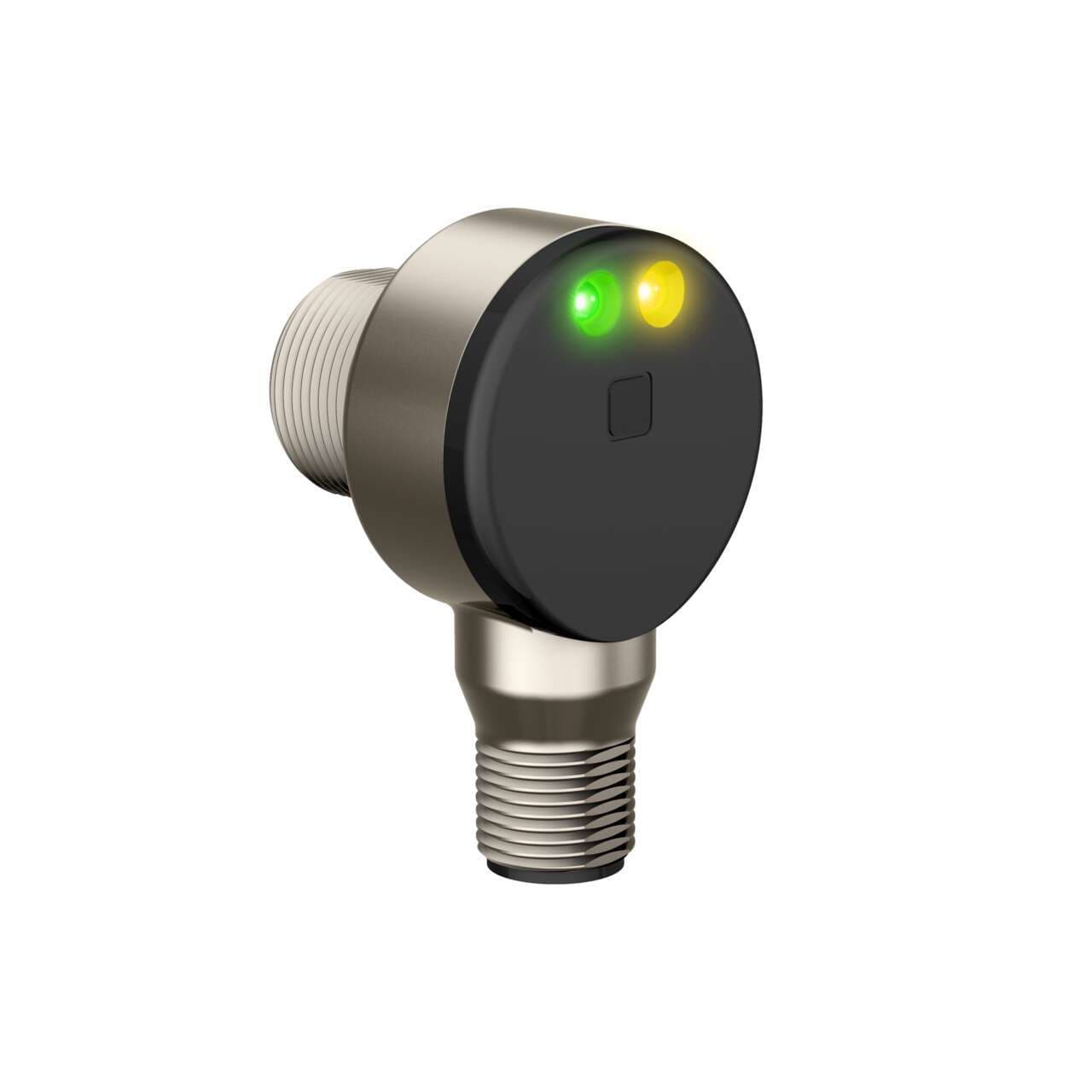

TM18VN6FF50Q8 Banner Proximity Sensors
Part#:TM18VN6FF50Q8
Alt. Part#:42048
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ BEAM TM18: Fixed Field Background Suppression; Range: 50 mm; Input: 10-30 V dc; Outputs: NPN Complementary; 4-pin M12 Integral QD
Product Details
- Weight 68.0388 g
- Country Of Origin US
- Primary Housing Material Zinc Die-Cast with Nickel-Plating
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Min Op. Temp. (°C) -40
- IP Rating IP67, IP69
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Adjustments N/A
- Feature: Timing (Hold/Delay) No
- Outputs NPN
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Special Feature: Water Detection No
- Sensing Beam Visible Red LED
- Number of Pins 4
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Washdown Rated Yes
- Power DC
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 185
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 50
- Connection Integral QD
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- DeviceNet No
- Input/Output Discrete
- Output response time (ms) 3 ON/1.5 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Housing Style Barrel
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Indicator LEDs
- IO Link No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TM18VN6FF50Q8 on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering TM18VN6FF50Q8 is a fixed-field photo-electric sensor within the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity and operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is built to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. The sensor features a cylindrical threaded/barrel shape with an M18 thread size, a single digital output via an NPN transistor, and a sensing distance of 50mm. It emits visible red light with a wavelength of 660 nm and responds within 3ms. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.
