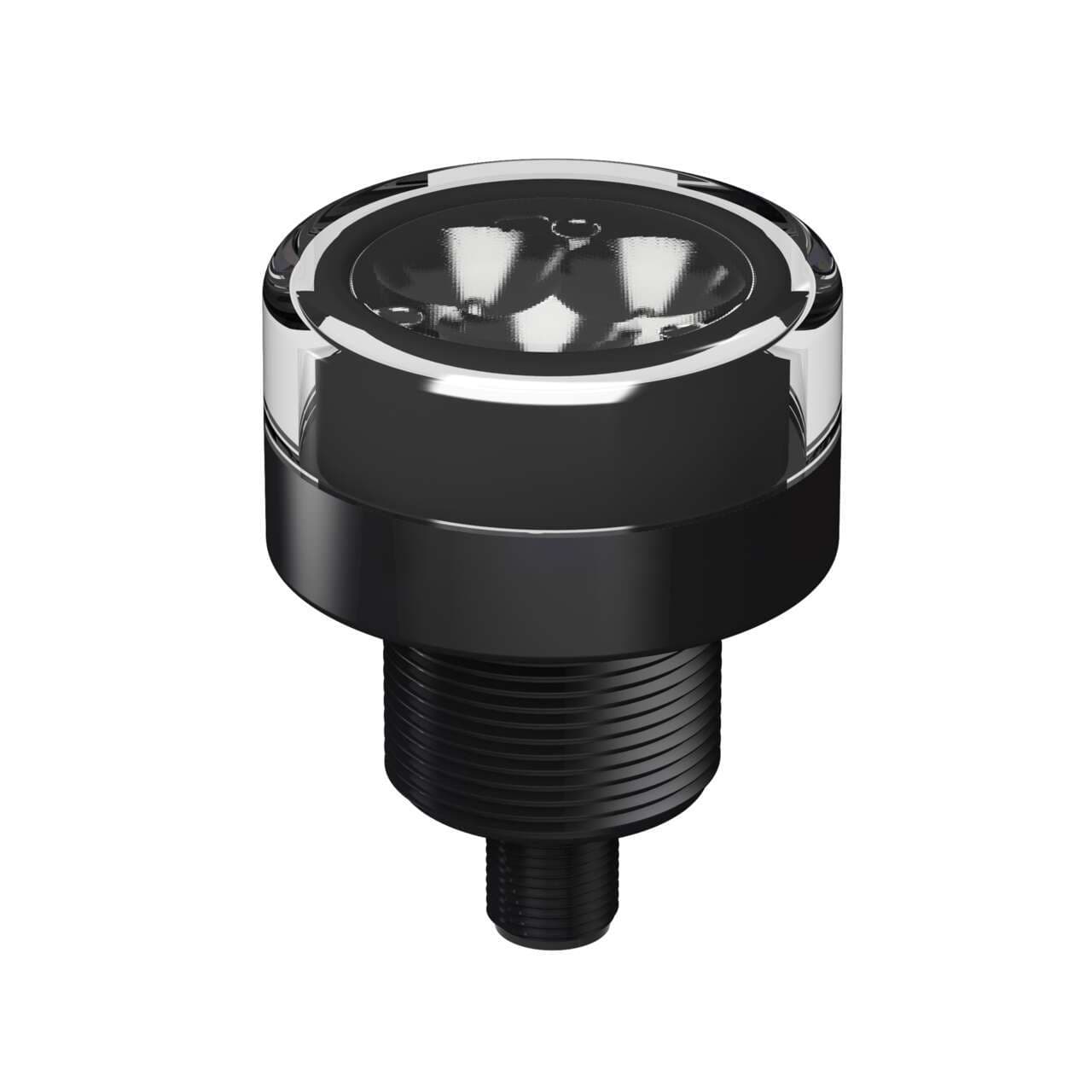

WL50SBL5Q Banner Light Bars

Name: WL50SBL5Q
Brand: Banner
Price: 230 USD
Availability: BackOrder

Part#:WL50SBL5Q

Alt. Part#:18744

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

Work Light-50 mm Spot Light; Voltage: 12-30 V dc; Environmental Rating: IP67; Color: Blue; 5 Deg Lens; 5-pin M12 Integral QD

Product Details

Weight
158.7572 g
Country Of Origin
MX
IO Link
No
Modbus RTU
No
Feature: Chemical Resistant
No
Wireless
No
Pro-Editor Compatible (Discrete)
No
Feature: Audible
No
Feature: Washdown Rated
Yes
Primary Window Material
Polycarbonate Clear
Lens Focusing Angle (°)/Field of View
5
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-20
Max Op. Temperature (°C)
50
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Physical Dimensions (LxWxH or DxH mm)
50.0 x 65.8
Connection
Integral QD
Animation Option 1
Solid On
Color Option 1
Blue
Cable Length (m)
2

Primary Housing Material

Aluminum

Feature: Hazardous Area

Primary Housing Color

Black

Environmental Rating

IP67; IP69

Number of Input Pins/Conductors

Supply Voltage

12-30 V dc

Color Technology

Standard LED

Product Size (mm)

Quick Disconnect Type

M12 (Euro)

Housing Style

Base Mount - Flat Window

Power

Illumination

Yes

Mounting Thread

M30 x 1.5

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Number of Colors / Segments

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WL50SBL5Q on Powermatic Associates is $230.00. Order now.

About the product

Banner Engineering WL50SBL5Q is a task light designed for industrial applications requiring high-intensity illumination. It features a sealed, chemically-resistant LED spot with a 5° clear window for 1-color blue LED illumination. The light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The construction includes a clear polycarbonate window and an aluminium housing, ensuring durability. This model has a 50mm diameter work light and comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. Its round flat window on a cylindrical body is designed for easy integration into various setups. The WL50SBL5Q offers an IP67 and IP69K degree of protection, making it suitable for harsh environments. It can be mounted via surface or base with an M30 thread and operates within an ambient air temperature range of -20°C to +50°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control.
