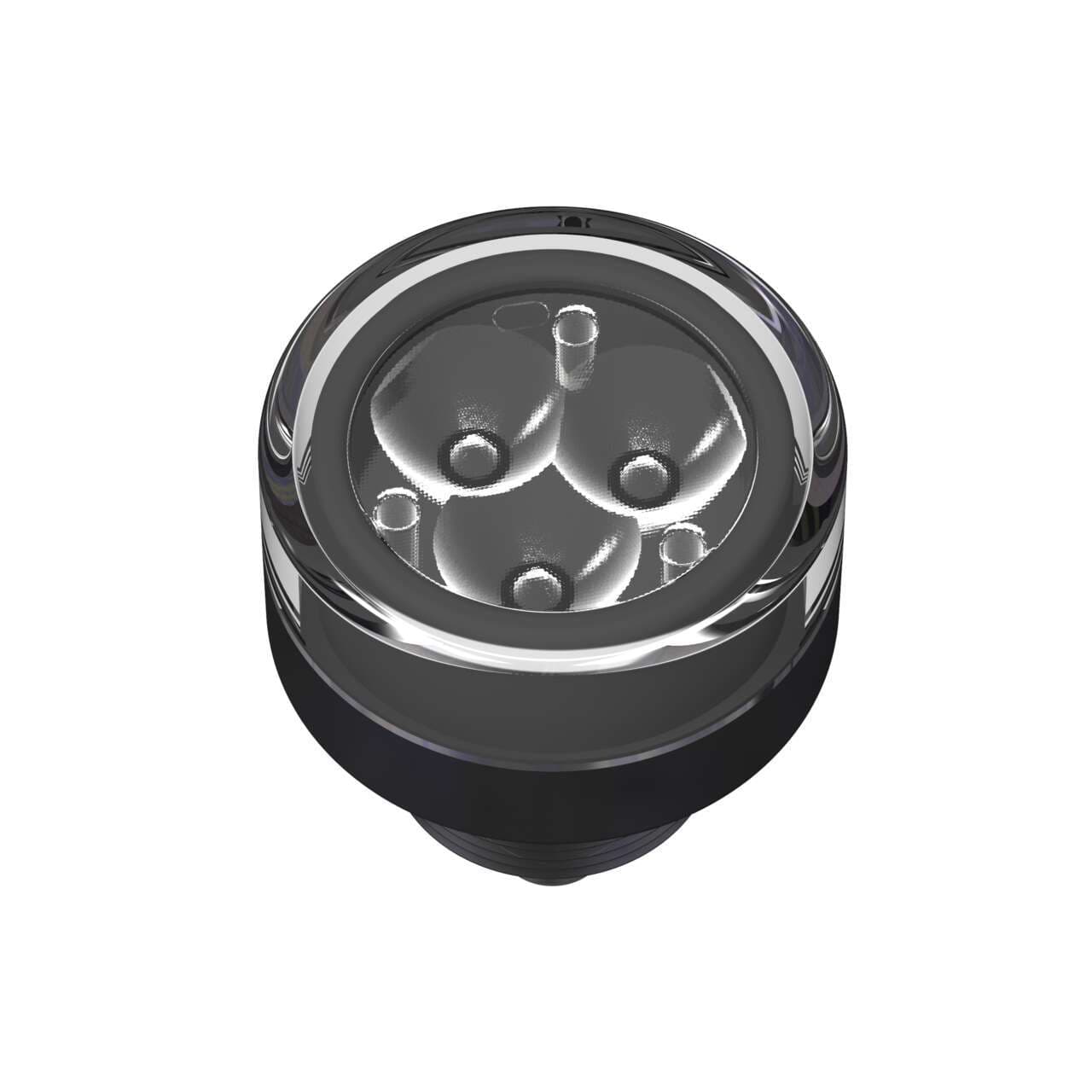

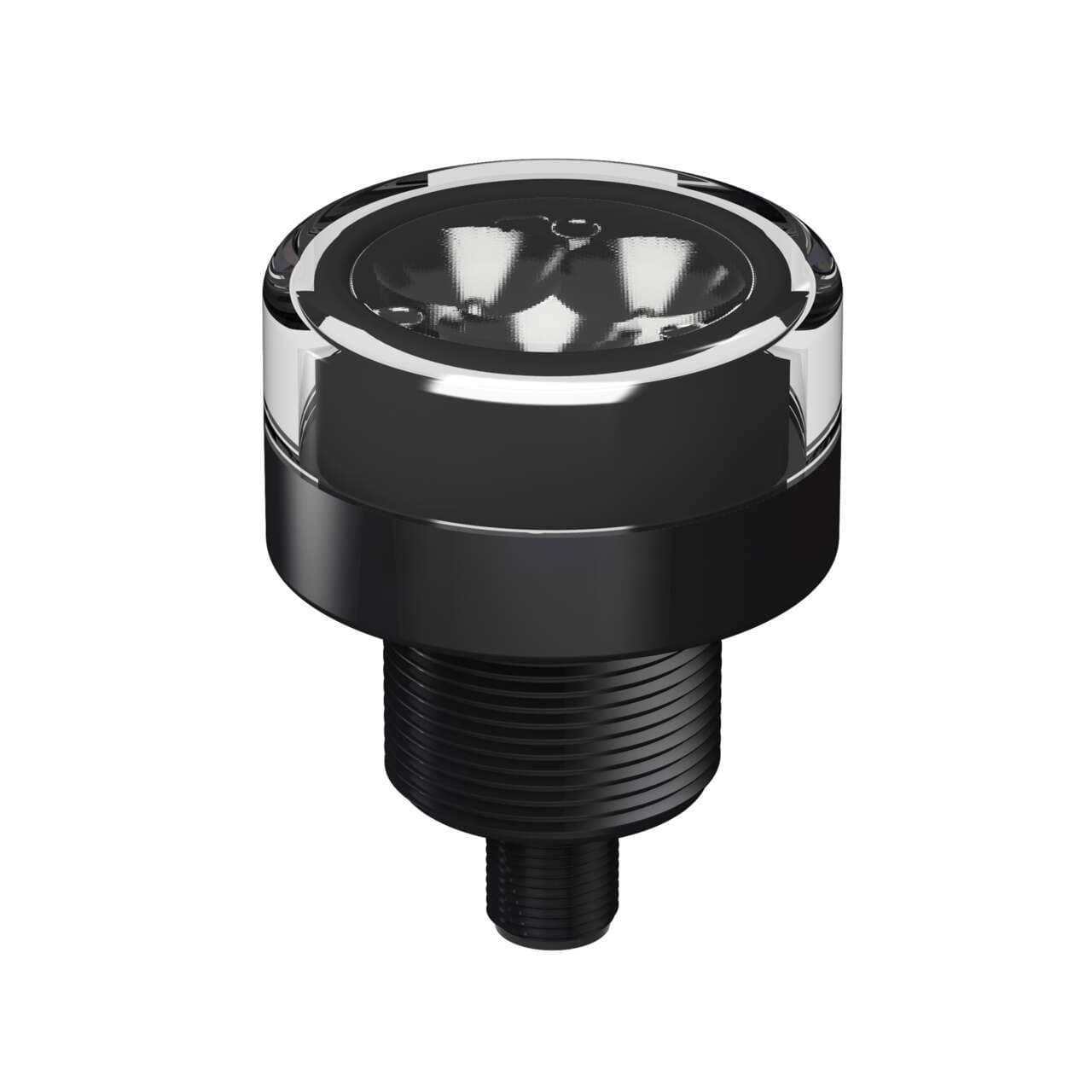

WL50SGL5Q Banner Light Bars
Part#:WL50SGL5Q
Alt. Part#:18742
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
Work Light-50 mm Spot Light; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: Green; 5 Deg Lens; M12 Integral QD
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Primary Housing Color Black
- Wireless No
- Product Size (mm) 50
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 65.8
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Power DC
- Lumens Color 1 210
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Green
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Hazardous Area No
- Number of Colors / Segments 1
- Connection Integral QD
- Lens Focusing Angle (°)/Field of View 5
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Color Technology Standard LED
- Feature: Quick Disconnect Yes
- Power Source DC
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Illumination Yes
- Number of Input Pins/Conductors 5
- Primary Window Material Polycarbonate Clear
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Flat Window
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WL50SGL5Q on Powermatic Associates is $230.00. Order now.
About the product
Banner Engineering WL50SGL5Q is a task light designed for industrial applications, featuring a sealed, chemically-resistant LED that provides high-intensity spot illumination. It is equipped with a 5° clear window for 1-color green LED illumination. The light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The construction includes a clear polycarbonate window and an aluminium housing, ensuring durability. This model has a 50mm diameter work light and comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. Its round flat window on a cylindrical body is designed for easy integration, and it offers a degree of protection rated at IP67 and IP69K, making it suitable for harsh environments. The WL50SGL5Q can be mounted via surface or base with an M30 thread and is operational in ambient air temperatures ranging from -20°C to +50°C. It includes 1 x digital input for color control (12Vdc / 24Vdc) and delivers a luminous flux of 210 lumens.
