WL50SRL20Q Banner Light Bars
Part#:WL50SRL20Q
Alt. Part#:19036
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
Work Light-50 mm Spot Light; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: Red; 20 Deg Lens; M12 Integral QD
Product Details
- Weight 157.850016 g
- Country Of Origin MX
- Primary Housing Material Aluminum
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -20
- Illumination Yes
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 65.8
- Feature: Hazardous Area No
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Red
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Connection Integral QD
- Housing Style Base Mount - Flat Window
- Storage Temp (°C) -40 to 70
- Wireless No
- Power DC
- Lumens Color 1 100
- Primary Housing Color Black
- Modbus RTU No
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Lens Focusing Angle (°)/Field of View 20
- Mounting Thread M30 x 1.5
- Color Technology Standard LED
- Environmental Rating IP67; IP69
- Feature: Audible No
- Cable Length (m) 2
- Product Size (mm) 50
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Number of Input Pins/Conductors 5
- Primary Window Material Polycarbonate Clear
- Feature: Chemical Resistant No
- Feature: Washdown Rated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WL50SRL20Q on Powermatic Associates is $230.00. Order now.
About the product

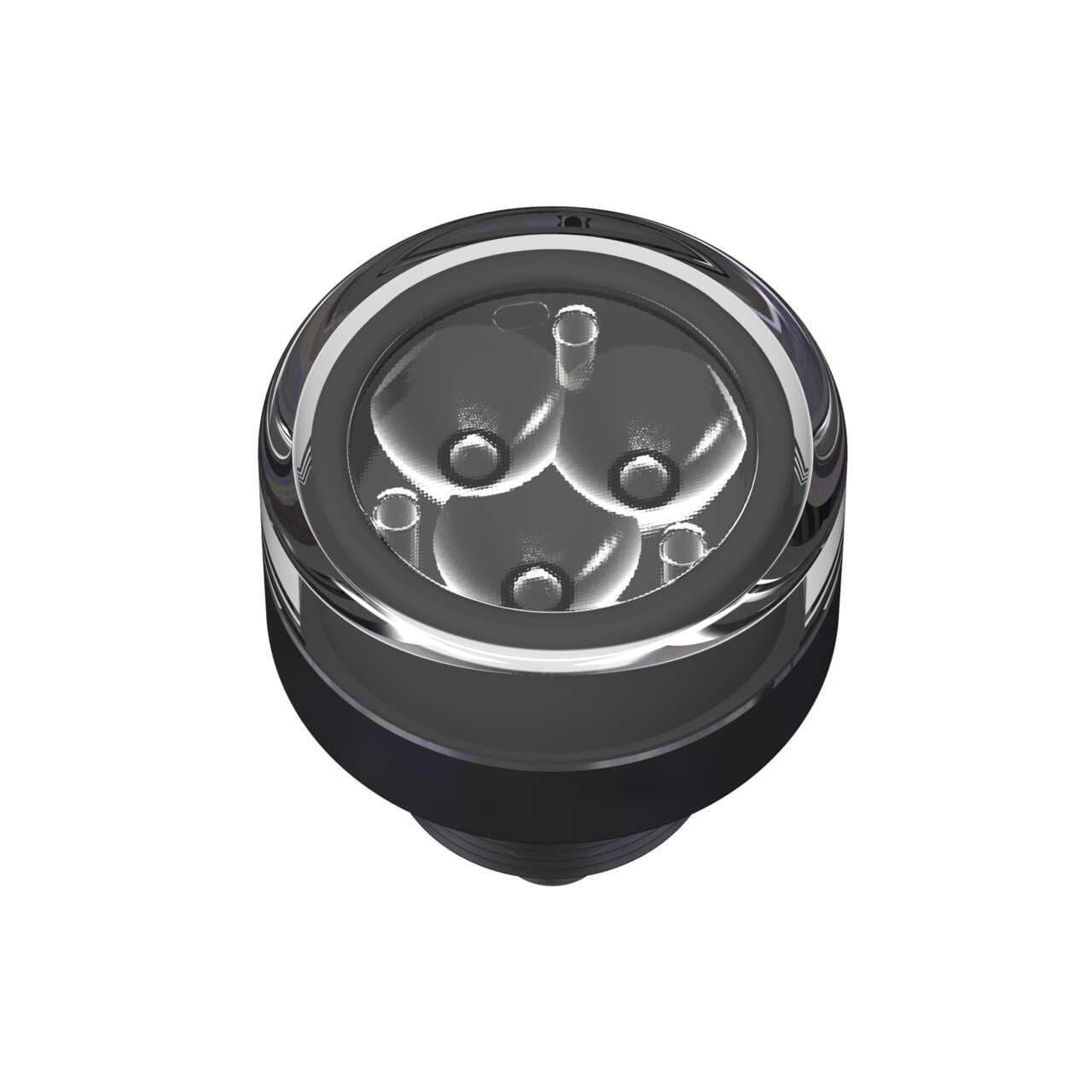

Banner Engineering WL50SRL20Q is a task light designed for industrial applications, featuring a sealed, chemically-resistant LED that produces a high-intensity red light spot through a 20° clear window. This light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is constructed with a clear polycarbonate window and an aluminium housing, ensuring durability. The light has a 50mm diameter and is equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. Its round flat window on a cylindrical body is designed for surface or base mounting with an M30 thread. The WL50SRL20Q offers a degree of protection rated at IP67 and IP69K, making it suitable for use in environments with temperatures ranging from -20°C to +50°C. It includes one digital input for color control and delivers a luminous flux of 100 lumens.
WL50SRL20Q Related Documents
Similar products from: Banner Light Bars
Manufacturer warranty
WL50SRL20Q Banner
$230.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$230.00
$230.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare WL50SRL20Q with other Light Bars products
Weight
Country Of Origin
Primary Housing Material
Quick Disconnect Type
Min Op. Temperature (°C)
Illumination
Animation Option 1
Physical Dimensions (LxWx...
Feature: Hazardous Area
IO Link
Selected product
WL50SRL20Q
Banner
Work Light-50 mm Spot Light; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: Red; 20 D...
Weight157.850016 g
Country Of OriginMX
Primary Housing MaterialAluminum
Quick Disconnect TypeM12 (Euro)
Min Op. Temperature (°C)-20
IlluminationYes
Animation Option 1Solid On
Physical Dimensions (LxWxH or DxH mm)50.0 x 65.8
Feature: Hazardous AreaNo
IO LinkNo
WLB32C1130PBQ
Banner
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Ratin...
Weight1025.11792 g
Country Of OriginMX
Primary Housing MaterialAluminum
Quick Disconnect Type-
Min Op. Temperature (°C)-
IlluminationYes
Animation Option 1-
Physical Dimensions (LxWxH or DxH mm)-
Feature: Hazardous Area-
IO Link-
WLS28-2XW285S
Banner
WLS28-2 Work Light Strip; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Col...
Weight340.194 g
Country Of OriginMX
Primary Housing MaterialAluminum
Quick Disconnect Type-
Min Op. Temperature (°C)-
IlluminationYes
Animation Option 1-
Physical Dimensions (LxWxH or DxH mm)-
Feature: Hazardous Area-
IO Link-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
