WL50SWL20 Banner Light Bars
Part#:WL50SWL20
Alt. Part#:19046
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
Work Light-50 mm Spot Light; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; 20 Deg Lens; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 241.764536 g
- Country Of Origin MX
- Product Size (mm) 50
- Primary Housing Material Aluminum
- Power Source DC
- Number of Colors / Segments 1
- Power DC
- Mounting Thread M30 x 1.5
- Color Option 1 White
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Primary Housing Color Black
- Modbus RTU No
- Color Technology Standard LED
- Illumination Yes
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 2
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Primary Window Material Polycarbonate Clear
- Feature: Quick Disconnect No
- Wireless No
- Housing Style Base Mount - Flat Window
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Lumens Color 1 270
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 51.0
- Min Op. Temperature (°C) -20
- Feature: Hazardous Area No
- IO Link No
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Storage Temp (°C) -40 to 70
- Feature: Audible No
- Connection Cable
- Supply Voltage 12-30 V dc
- Lens Focusing Angle (°)/Field of View 20
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WL50SWL20 on Powermatic Associates is $230.00. Order now.
About the product

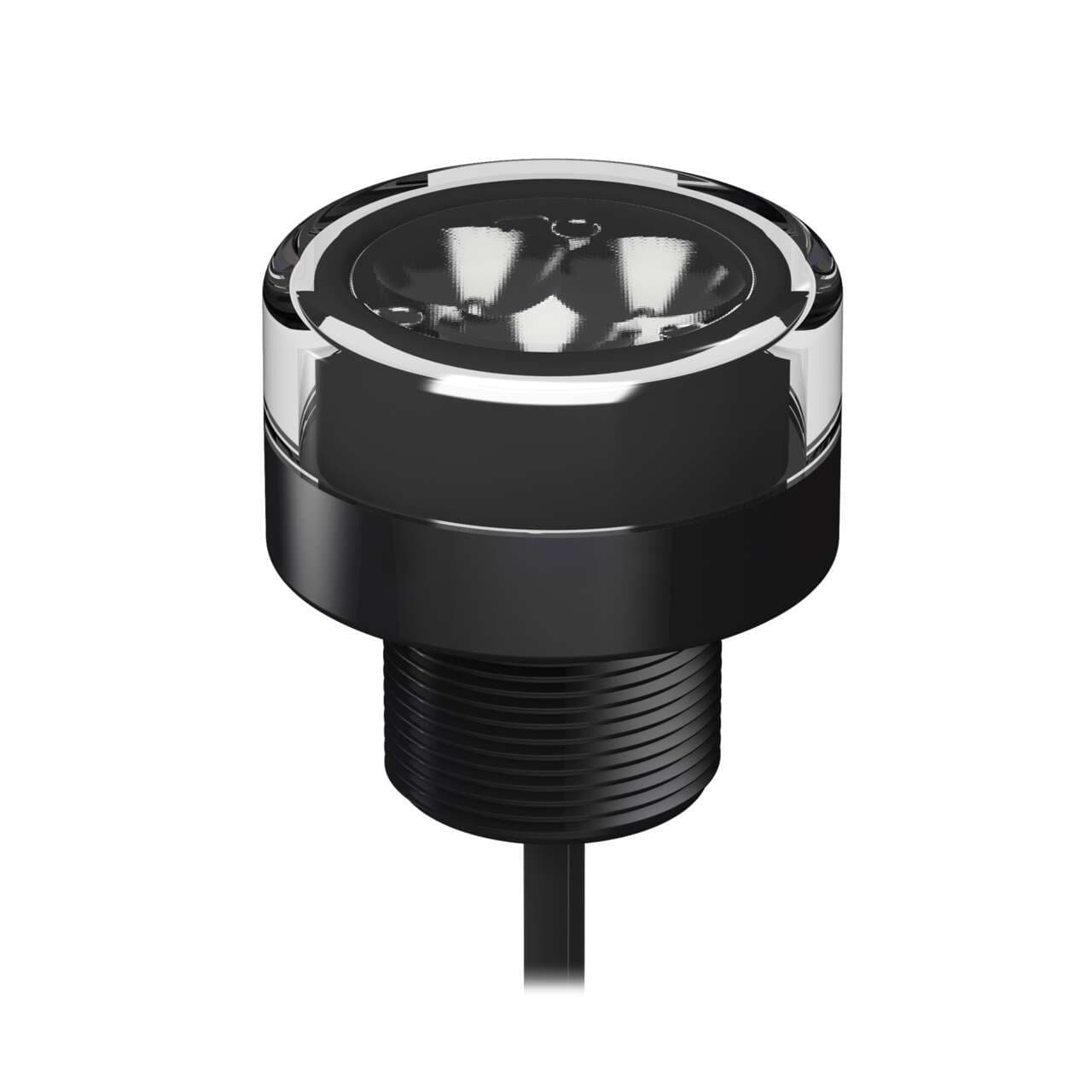

Banner Engineering WL50SWL20 is a task light designed for industrial applications, featuring a sealed, chemically-resistant LED with high-intensity spot illumination. It is equipped with a 20° clear window for 1-color Cool White (W) LED lighting. The unit operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal 24Vdc. Constructed with a clear polycarbonate (PC) window and an aluminium housing, it has a 50mm diameter work light. This product is pre-wired with a 2m / 6.5ft 2-wire cable terminated with bare end flying leads. Its round flat window on a cylindrical body is designed for surface or base mounting with an M30 thread. The WL50SWL20 offers a degree of protection rated at IP67 and IP69K, making it suitable for harsh environments. It can operate in ambient air temperatures ranging from -20°C to +50°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.
