WL50SWSSGL5PWMQ Banner Light Bars
Part#:WL50SWSSGL5PWMQ
Alt. Part#:93188
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description

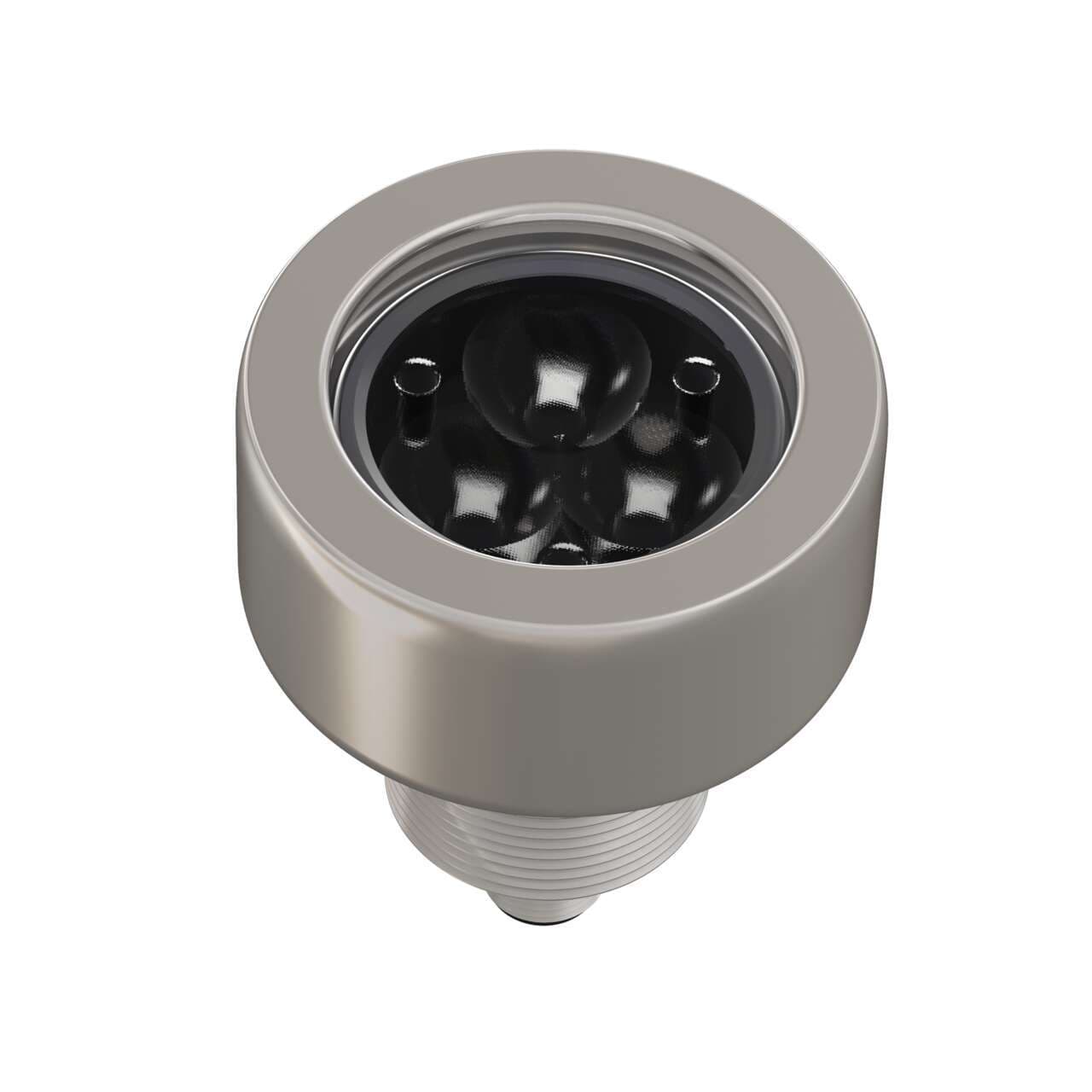

Work Light 50 mm 316SS Spot Light; PWM Dimming; Voltage: 12-30 V dc; Environmental Rating: IP69K; Color: White; 5 Deg Lens; Glass Window; 5-pin M12 Integral QD
Product Details
- Weight 471.73568 g
- Country Of Origin MX
- Power Source DC
- Color Option 1 White
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Audible No
- Primary Housing Material Stainless Steel
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 56.0 x 71.1
- IO Link No
- Power DC
- Color Technology Standard LED
- Dimming Option PWM
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 50
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Storage Temp (°C) -40 to 70
- Wireless No
- Lens Focusing Angle (°)/Field of View 5
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 5
- Primary Window Material Glass Clear
- Housing Style Base Mount - Flat Window
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Environmental Rating IP67; IP69
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant Yes
- Illumination Yes
- Lumens Color 1 295
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WL50SWSSGL5PWMQ on Powermatic Associates is $471.00. Order now.
About the product
Banner Engineering WL50SWSSGL5PWMQ is a task light designed for industrial applications requiring a high-intensity light spot. This unit features a 5° glass window for precise illumination and is equipped with PWM dimmable 1-color Cool White (W) LED technology. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The light is constructed with a clear glass window and a stainless steel housing, ensuring durability and chemical resistance. It has a 50mm diameter work light and comes pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. The round flat window on a cylindrical body is designed for surface or base mounting with an M30 thread. It offers a degree of protection rated at IP67 and IP69K, making it suitable for harsh environments. The ambient air temperature for operation ranges from -20°C to +50°C. Additionally, it features 1 x digital input (12Vdc / 24Vdc) for color control and provides a luminous flux of 295 lm (lumens).
