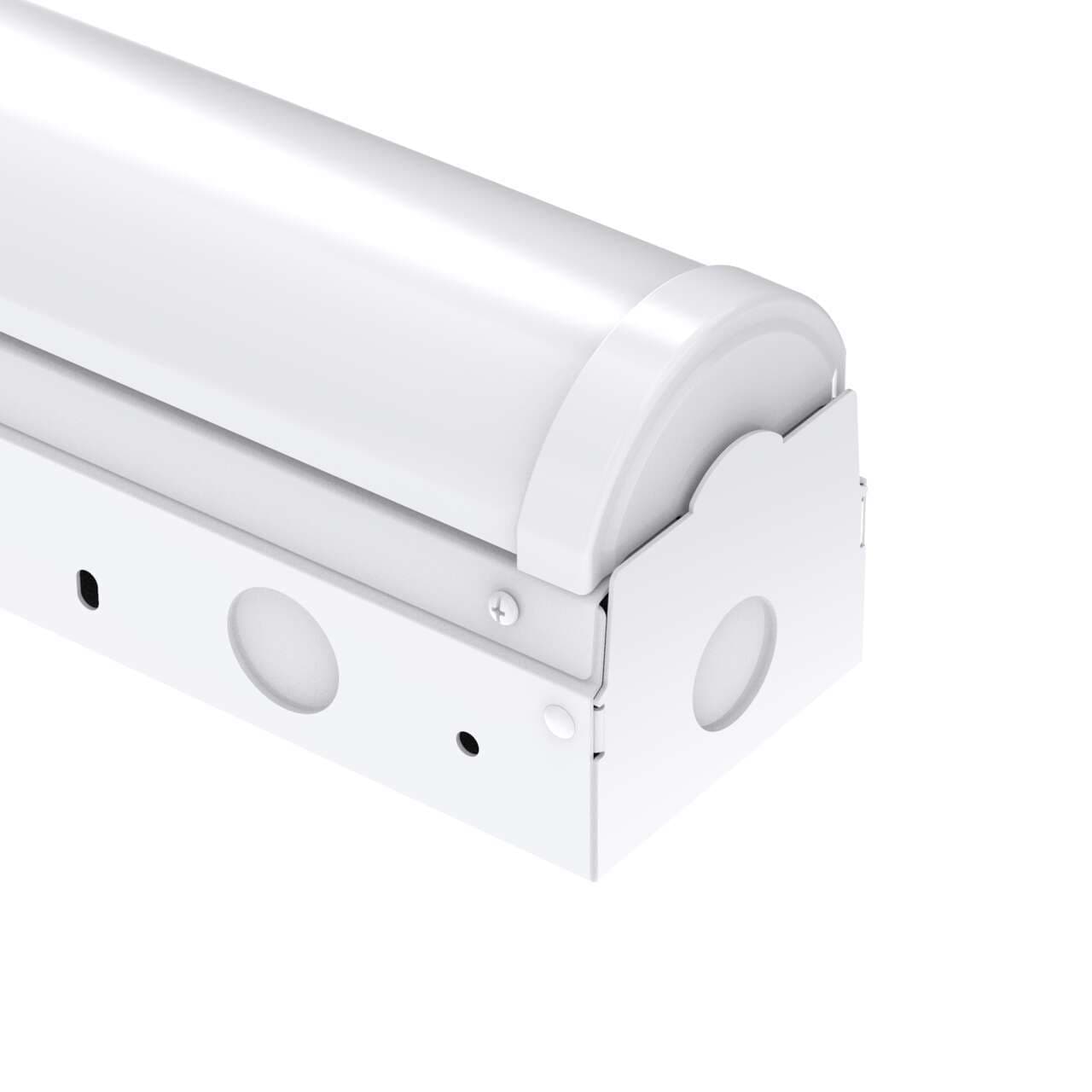

WLB72BZCW1200DACT Banner Light Bars
Part#:WLB72BZCW1200DACT
Alt. Part#:806645
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLB72 Basic Work Light Bar; 0-10 V dc Analog Dimming; Length: 1200 mm; Voltage: 120-277 V ac; Environmental Rating: IP20; Color: White; Cascadable; Conduit Openings - No Power cord; Diffuse window
Product Details
- Weight 3863.696656 g
- Country Of Origin MX
- Number of Colors / Segments 1
- Max Current Color (mA) 850
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Illumination Yes
- Cable Length (m) 2
- Dimming Option 0-10 V dc
- Primary Window Material Polycarbonate Diffused
- Housing Style Linear Strip
- Connection Conduit
- Illuminated Length (LxWxH mm) 1222.0
- IO Link No
- Primary Housing Material Galvanized Steel
- Color Technology Standard LED
- Environmental Rating IP20
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 1222.0 x 72.0 x 82.0
- Feature: Audible No
- Power AC
- Color Option 1 White
- Number of Input Pins/Conductors 5
- Feature: Hazardous Area No
- Mounting Thread No Thread
- Animation Option 1 Solid On
- Feature: Cascade Yes
- Min Op. Temperature (°C) -40
- Product Size (mm) 72
- Power Source AC
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Lumens Color 1 6800
- Wireless No
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Supply Voltage 120-277 V ac
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLB72BZCW1200DACT on Powermatic Associates is $279.00. Order now.
About the product
Banner Engineering WLB72BZCW1200DACT is a cascadable industrial large ultra-bright LED light strip/bar designed for task lighting applications. It features 0-10Vdc analog dimming control input and provides 1-color Daylight White (DW) LED illumination. This model operates on a supply voltage range of 120Vac-277Vac, including specific voltages such as 220Vac, 230Vac, and 240Vac. The dimensions of this light strip are L1200mm x W72mm, constructed with a polycarbonate (PC) diffused window and an aluminium housing. It offers a 1/2" cond. knock-out entry connection type and is designed in a linear lighting shape. The WLB72BZCW1200DACT has an IP20 degree of protection and can be mounted on surfaces or walls. It is capable of operating in ambient air temperatures ranging from -40°C to +50°C and includes 1 x digital input (120-240Vac) for color control.
