WLC90WGL15PWMQ Banner Light Bars
Part#:WLC90WGL15PWMQ
Alt. Part#:90444
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description

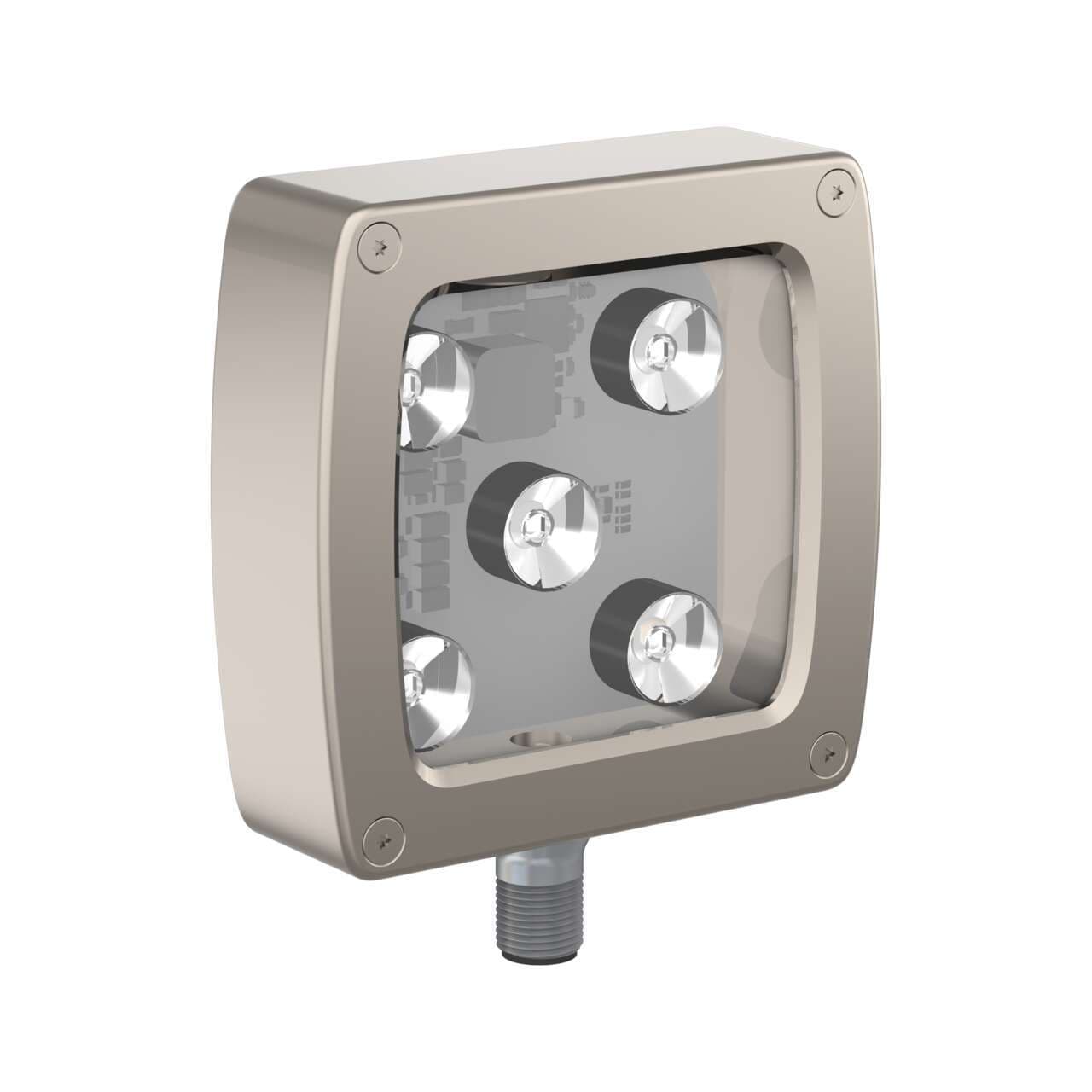

WLC90 Work Light; Dimensions: 90X90 mm; PWM Dimming; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; 15 Deg Lens; Window: Glass; 4-pin M12 Integral QD; Side exit
Product Details
- Weight 344.72992 g
- Country Of Origin MX
- Power DC
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 91.0 x 110.0 x 28.2
- Modbus RTU No
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Lens Focusing Angle (°)/Field of View 15
- Wireless No
- Housing Style Rectangular
- Lumens Color 1 700
- Environmental Rating IP67; IP68; IP68g; IP69
- Feature: Chemical Resistant Yes
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 4
- Primary Window Material Glass Clear
- Illumination Yes
- Dimming Option PWM
- Feature: Washdown Rated Yes
- Color Technology Standard LED
- Product Size (mm) 90
- Storage Temp (°C) -40 to 70
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- IO Link No
- Power Source DC
- Color Option 1 White
- Illuminated Length (LxWxH mm) 65.0
- Feature: Hazardous Area No
- Primary Housing Material Aluminum
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 70
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC90WGL15PWMQ on Powermatic Associates is $368.00. Order now.
About the product
Banner Engineering WLC90WGL15PWMQ is an industrial heavy-duty LED work light designed for task lighting applications. It features a 15° glass window for focused illumination and is equipped with PWM dimmable functionality for adjustable brightness. The light utilizes cool white (W) LED technology for clear visibility. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L90mm x W90mm, constructed with a borosilicate glass window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. The rectangular window shape is designed for precise lighting, and it offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for challenging environments. It can be mounted on surfaces or walls and is capable of operating in ambient air temperatures ranging from -40°C to +70°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control.
