WLC90WGL30 Banner Light Bars

WLC90WGL30 on Powermatic Associates
Banner

Part#:WLC90WGL30

Alt. Part#:86538

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

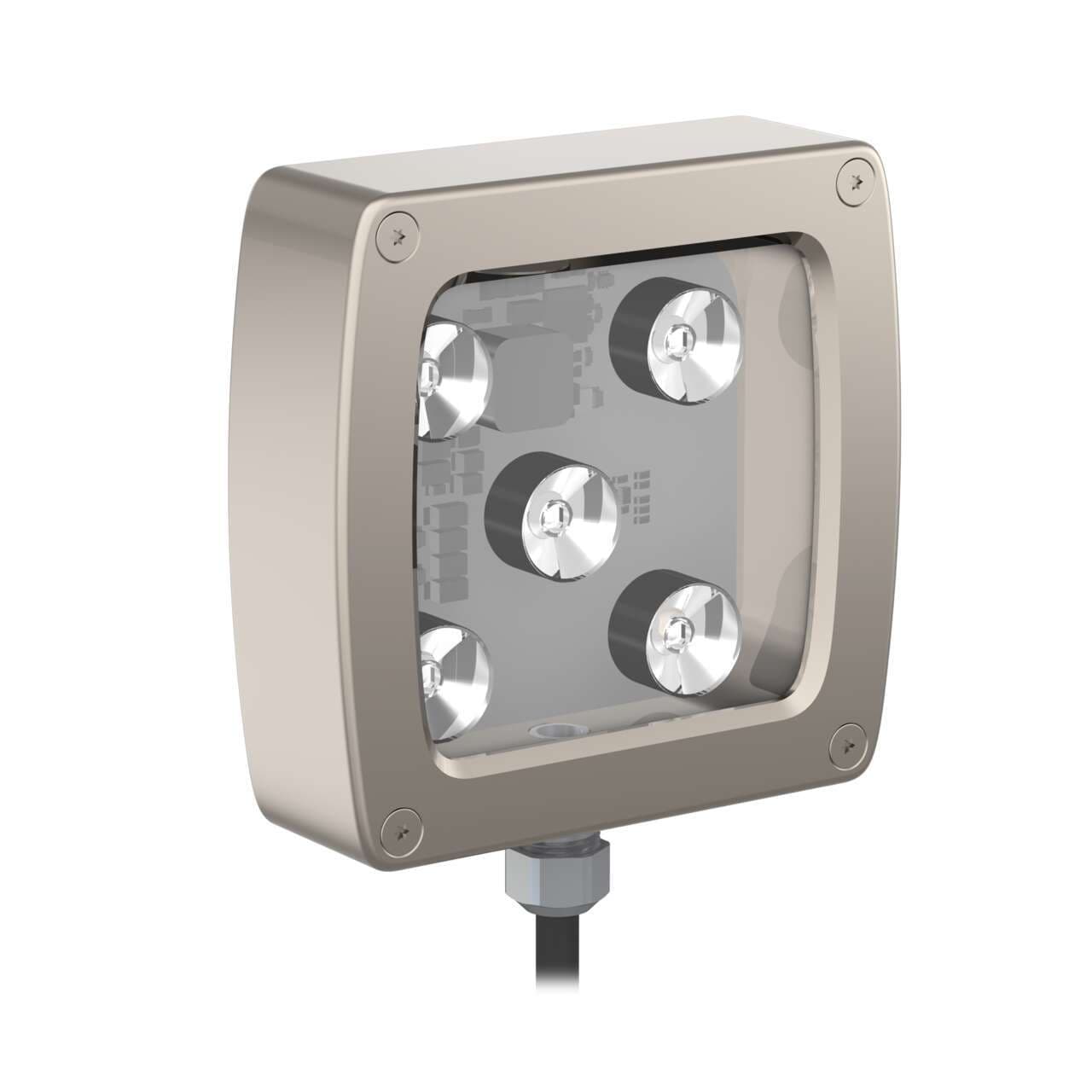

WLC90 Work Light; Dimensions: 90X90 mm; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; 30 Deg Lens; Window: Glass; 2 m (6.5 ft) Integral Cable; Side exit

Product Details

  • Weight
    394.62504 g
  • Country Of Origin
    MX
  • Number of Colors / Segments
    1
  • Lumens Color 1
    700
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Color Option 1
    White
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • IO Link
    No
  • Mounting Thread
    No Thread
  • Dimming Option
    High-Low-Off
  • Storage Temp (°C)
    -40 to 70
  • Wireless
    No
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    91.0 x 103.7 x 28.2
  • Feature: Audible
    No
  • Housing Style
    Rectangular
  • Color Technology
    Standard LED
  • Illuminated Length (LxWxH mm)
    65.0
  • Feature: Washdown Rated
    Yes
  • Illumination
    Yes
  • Connection
    Cable
  • Max Op. Temperature (°C)
    70
  • Feature: Chemical Resistant
    Yes
  • Cable Length (m)
    2
  • Product Size (mm)
    90
  • Supply Voltage
    12-30 V dc
  • Primary Window Material
    Glass Clear
  • Modbus RTU
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Input Pins/Conductors
    4
  • Lens Focusing Angle (°)/Field of View
    30
  • Primary Housing Material
    Aluminum
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Min Op. Temperature (°C)
    -40
  • Feature: Quick Disconnect
    No
  • Pro-Editor Compatible (Discrete)
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLC90WGL30 on Powermatic Associates is $352.00. Order now.

About the product

Banner Engineering WLC90WGL30 is a task light designed for industrial heavy-duty applications, featuring a 30° glass window side connection with 1-color Cool White (W) LED illumination. It operates on a supply voltage of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L90mm x W90mm, constructed with a borosilicate glass window and an aluminium housing. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, and has a rectangular window shape. The WLC90WGL30 offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for various challenging environments. It supports surface or wall mounting and can operate within an ambient air temperature range of -40°C to +70°C. Additionally, it includes 1 x digital input (12Vdc / 24Vdc) for color control.

WLC90WGL30 Related Documents

172704.pdf
