Powermatic Associates Logo

WLS28-2CW145S Banner Light Bars

WLS28-2CW145S on Powermatic Associates
Banner

Part#:WLS28-2CW145S

Alt. Part#:87842

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Work Light Strip; Length: 145 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; Cascadable; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    31.75144 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Feature: Hazardous Area
    No
  • Min Op. Temperature (°C)
    -40
  • Supply Voltage
    12-30 V dc
  • Cable Length (m)
    2
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Clear
  • Feature: Washdown Rated
    Yes
  • Environmental Rating
    IP65; IP67; IP69
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    70
  • Illuminated Length (LxWxH mm)
    145.0
  • Physical Dimensions (LxWxH or DxH mm)
    190.5 x 28.0 x 20.9
  • Number of Input Pins/Conductors
    3
  • Dimming Option
    High-Low-Off
  • Lumens Color 1
    400
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Product Size (mm)
    28
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Aluminum
  • Power
    DC
  • Number of Colors / Segments
    1
  • Power Source
    DC
  • Housing Style
    Linear Strip
  • Illumination
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2CW145S on Powermatic Associates is $211.00. Order now.

About the product

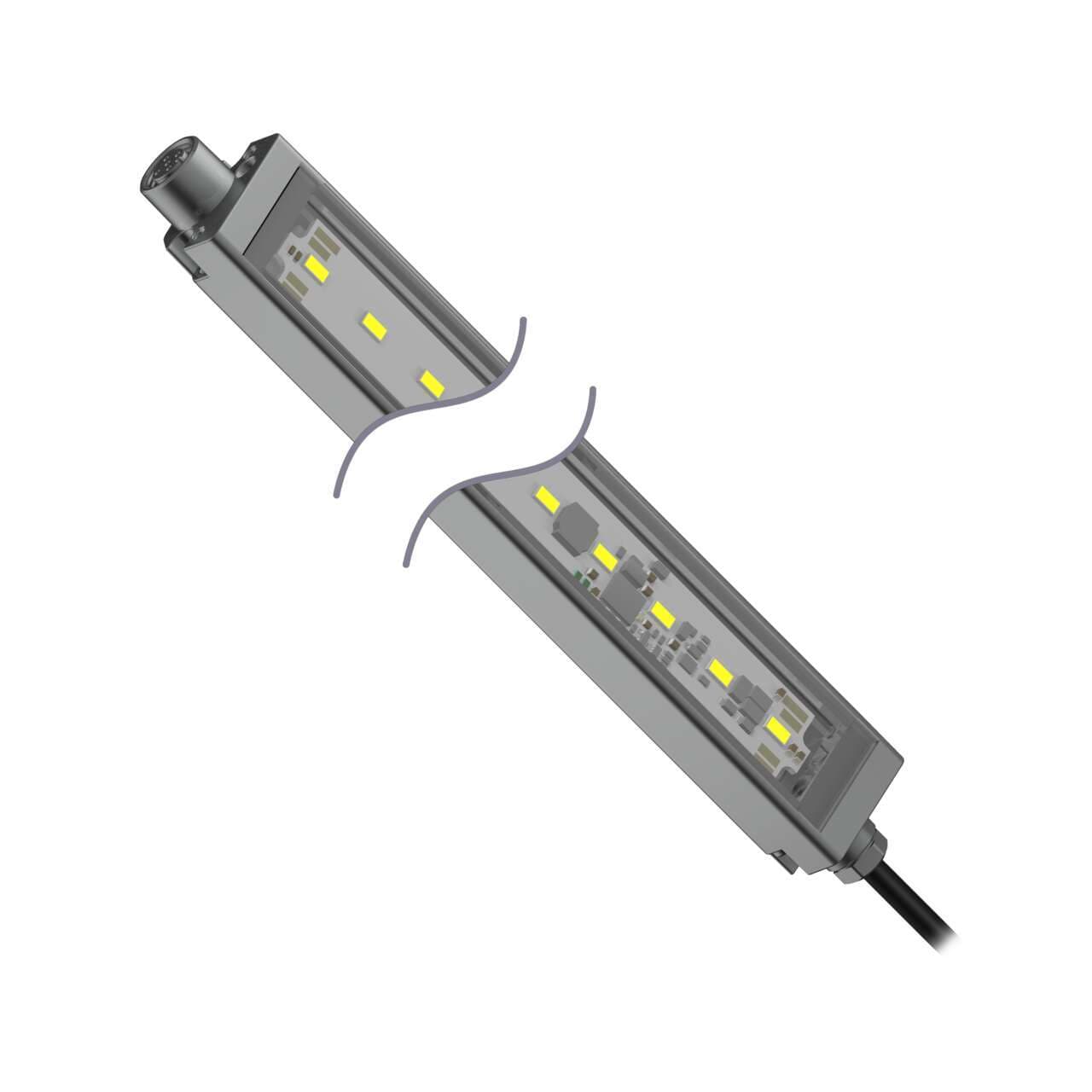

Banner Engineering WLS28-2CW145S is a task light designed as a cascadable sealed LED industrial strip light/bar. It features a clear plastic window for 1-color Cool White (W) LED illumination. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This product measures L145mm x W28mm and is constructed with a Polycarbonate (PC) window and an Anodized Aluminium housing. It comes pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads. The linear light strip is designed for surface or wall mounting and offers a degree of protection rated at IP65, IP67, and IP69K. It can operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12-30Vdc) for color control. The luminous flux of the WLS28-2CW145S is 400 lm (lumens).

WLS28-2CW145S Related Documents

175008.pdf
