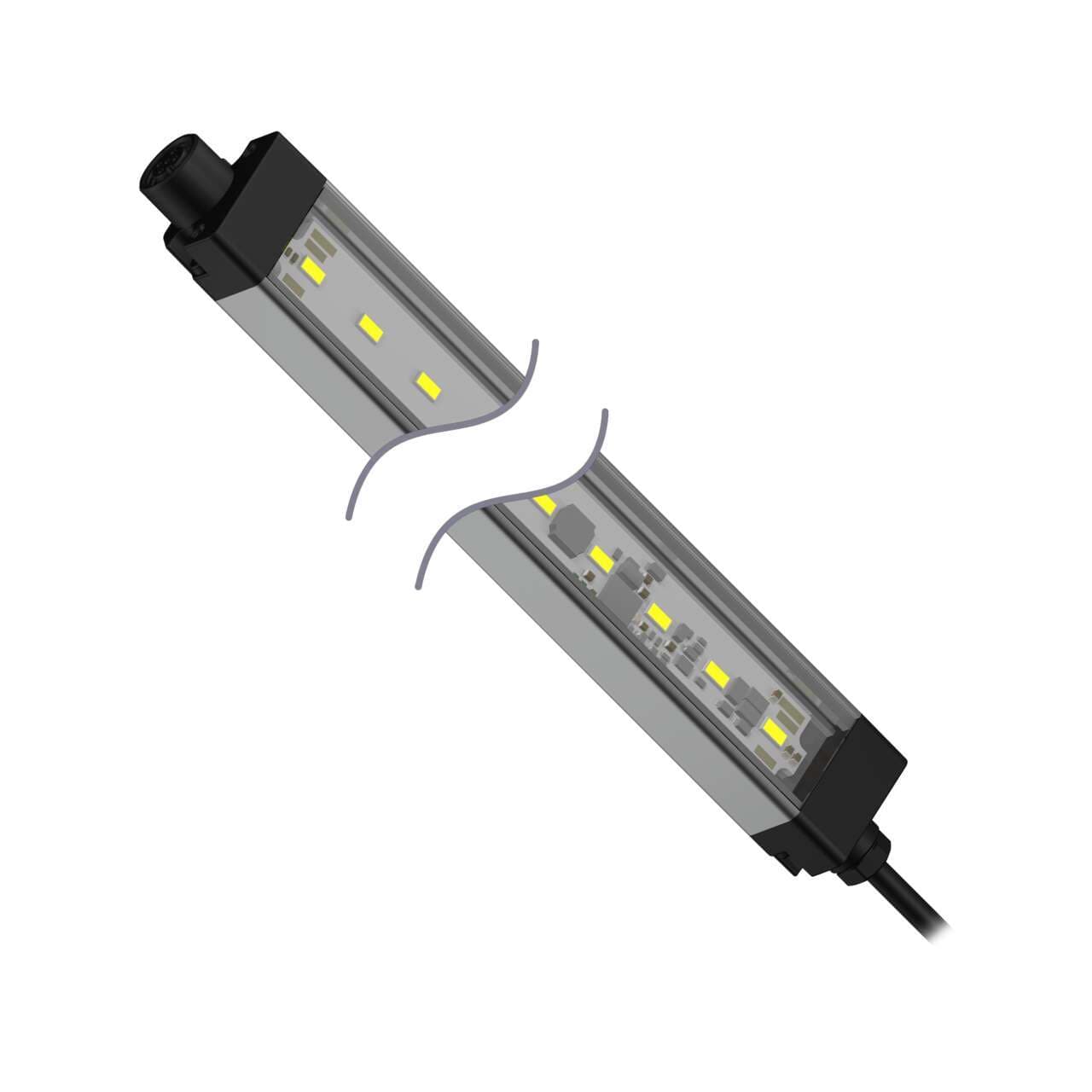

WLS28-2CW430X Banner Light Bars
Part#:WLS28-2CW430X
Alt. Part#:87748
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLS28-2 Work Light Strip; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 476.2716 g
- Country Of Origin MX
- Cable Length (m) 2
- Number of Colors / Segments 1
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Product Size (mm) 28
- Illuminated Length (LxWxH mm) 430.0
- Feature: Cascade Yes
- Power DC
- Connection Cable
- Min Op. Temperature (°C) -40
- Wireless No
- Primary Housing Material Aluminum
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Feature: Hazardous Area No
- Mounting Thread No Thread
- Number of Input Pins/Conductors 3
- Illumination Yes
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 70
- Modbus RTU No
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 473.5 x 28.0 x 20.9
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 1200
- Primary Window Material Polycarbonate Clear
- Housing Style Linear Strip
- Color Option 1 White
- Environmental Rating IP50
- IO Link No
- Power Source DC
- Dimming Option High-Low-Off
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2CW430X on Powermatic Associates is $269.00. Order now.
About the product
Banner Engineering WLS28-2CW430X is a cascadable LED industrial strip light designed for task lighting applications. It features a clear plastic window for 1-color Cool White (W) LED illumination, with a luminous flux of 1200 lm. This product operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this linear light strip are L430mm x W28mm, and it is constructed with a polycarbonate (PC) window and an anodized aluminum housing. It comes pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads for connection. The WLS28-2CW430X offers a degree of protection rated at IP50 and can be mounted on surfaces or walls. It is designed to operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12-30Vdc) for color control.
