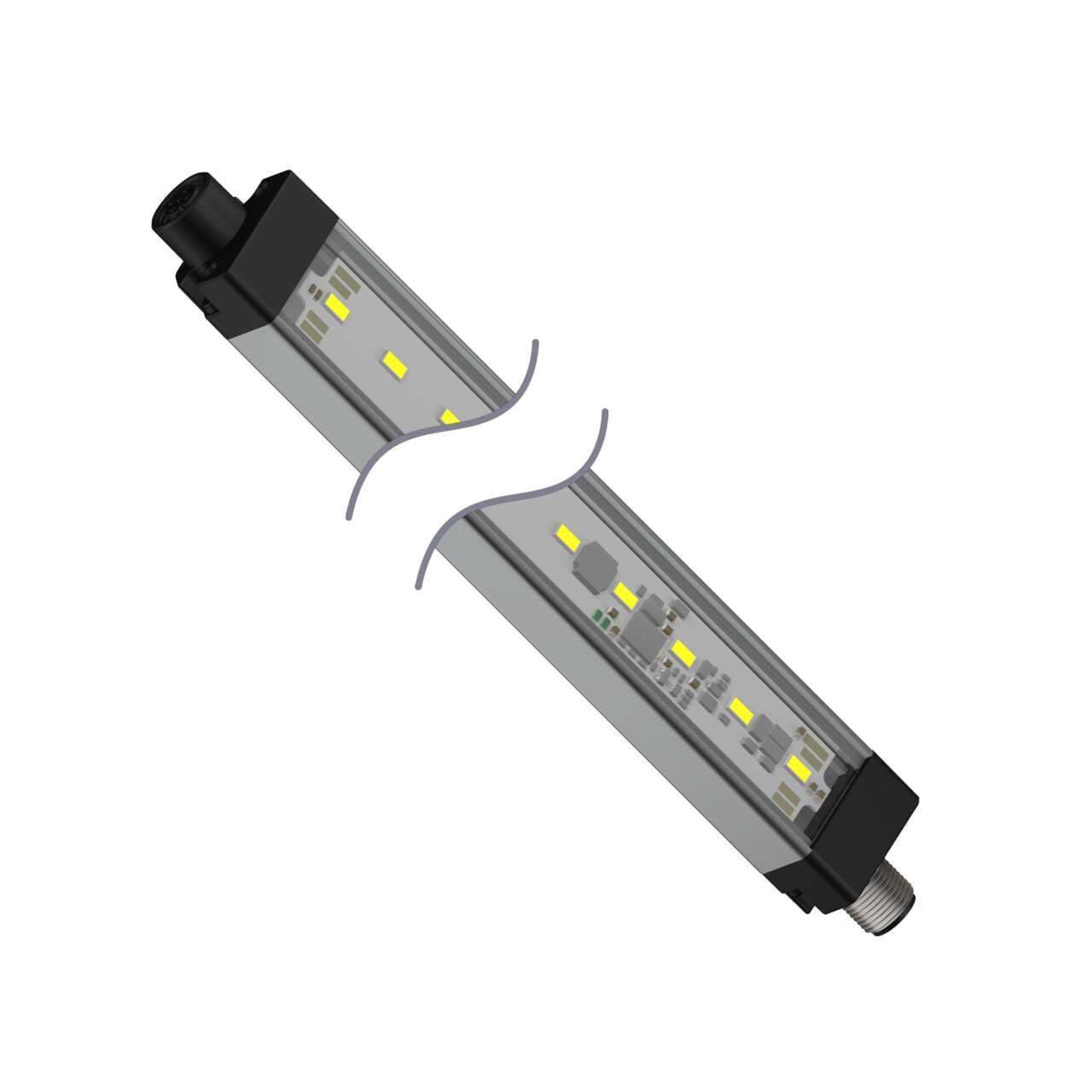

WLS28-2CWGRXX3-1130X24Q Banner Light Bars

Name: WLS28-2CWGRXX3-1130X24Q
Brand: Banner
Price: 627 USD
Availability: BackOrder

WLS28-2CWGRXX3-1130X24Q on Powermatic Associates

Part#:WLS28-2CWGRXX3-1130X24Q

Alt. Part#:804650

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Multicolor Light Strip; Length: 1130 mm; Voltage: 24 V dc; Environmental Rating: IP50; Colors: White Green Red; Cascadable; 4-pin M12 Integral QD

Product Details

Weight
861.8248 g
Country Of Origin
MX
Multi-Color Device
Single Color On
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Wireless
No
IO Link
No
Feature: Cascade
Yes
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Primary Window Material
Polycarbonate Clear
Max Op. Temperature (°C)
50
Physical Dimensions (LxWxH or DxH mm)
1181.0 x 28.0 x 21.0
Environmental Rating
IP50
Illuminated Length (LxWxH mm)
1130.0
Supply Voltage
24 V dc
Color 2 - Wavelength/Color Temp/Coordinates
525 nm

Number of Input Pins/Conductors

Lumens Color 2

1600

Max Current Color (mA)

1600

Color 3 - Wavelength/Color Temp/Coordinates

625 nm

Lumens Color 3

740

Color Option 3

Red

Lumens Color 1

2600

Color Option 2

Green

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Connection

Integral QD

Quick Disconnect Type

M12 (Euro)

Animation Option 1

Solid On

Color Option 1

White

Product Size (mm)

Color Technology

Standard LED

Primary Housing Material

Aluminum

Color Input Control

Multiple (One or more wires/color, enables more colors than input wires)

Number of Colors / Segments

Mounting Thread

No Thread

Indication

Yes

Illumination

Yes

Housing Style

Linear Strip

Power Source

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2CWGRXX3-1130X24Q on Powermatic Associates is $627.00. Order now.

About the product

Banner Engineering WLS28-2CWGRXX3-1130X24Q is a task light from the EZ-STATUS series, designed as a cascadable multicolor LED industrial strip light/bar. It features a clear plastic window for override control and provides LED illumination in a 3-color W/G/R (white, green, red) color pattern. The housing is black, constructed from anodized aluminum, and the window material is polycarbonate (PC), ensuring durability. This model operates on a 24Vdc supply voltage and measures L1130mm x W28mm. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The linear light strip is rated with an IP50 degree of protection, making it suitable for environments with limited dust ingress protection. It can operate in ambient air temperatures ranging from -40°C to +50°C and includes 3 x digital inputs (24Vdc) for color control.

WLS28-2CWGRXX3-1130X24Q Related Documents

204557.pdf

$627.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$627.00

$627.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
