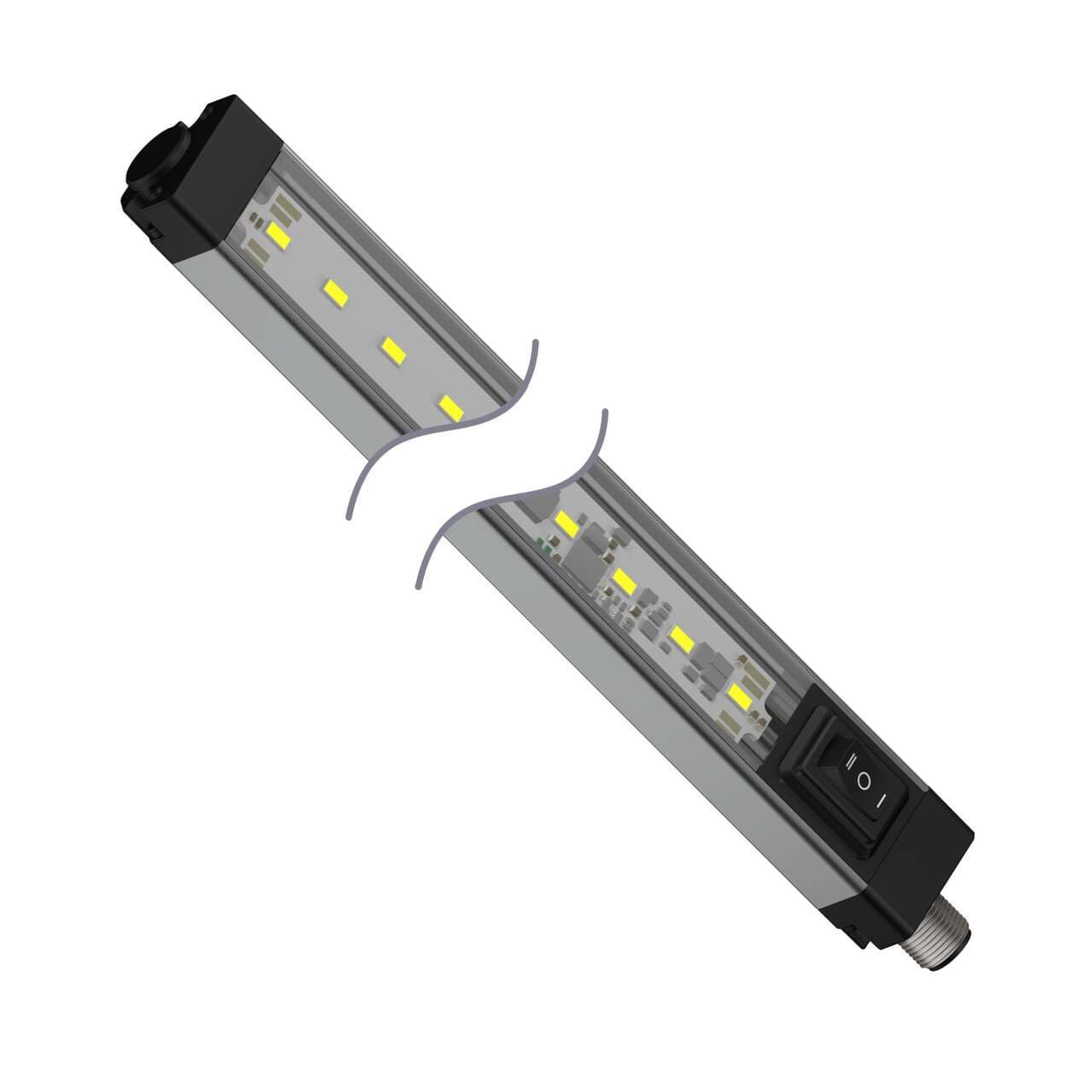

WLS28-2XW710DXPBQ Banner Light Bars

Name: WLS28-2XW710DXPBQ
Brand: Banner
Price: 404 USD
Availability: BackOrder

WLS28-2XW710DXPBQ on Powermatic Associates

Part#:WLS28-2XW710DXPBQ

Alt. Part#:88014

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Work Light Strip; Switched; Length: 710 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 4-pin M12 Integral QD

Product Details

Weight
680.388 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Illumination Switch Function
I=Low; O=OFF; II=High
Feature: Hazardous Area
No
IO Link
No
Wireless
No
Feature: Chemical Resistant
No
Modbus RTU
No
Feature: Audible
No
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Environmental Rating
IP50
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
70
Illuminated Length (LxWxH mm)
710.0
Supply Voltage
12-30 V dc
Physical Dimensions (LxWxH or DxH mm)
780.0 x 28.0 x 25.0
Number of Input Pins/Conductors
4
Quick Disconnect Type
M12 (Euro)

Color 1 - Wavelength/Color Temp/Coordinates

6500K (Cool)

Lumens Color 1

1500

Connection

Integral QD

Animation Option 1

Solid On

Dimming Option

High-Low-Off

Color Option 1

White

Color Technology

Standard LED

Housing Style

Linear Strip

Number of Colors / Segments

Power Source

Illumination

Yes

Power

Primary Housing Material

Aluminum

Product Size (mm)

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Mounting Thread

No Thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XW710DXPBQ on Powermatic Associates is $404.00. Order now.

About the product

Banner Engineering WLS28-2XW710DXPBQ is a LED industrial task strip light/bar designed for various lighting tasks. It features a high/low/off switch, diffused plastic window for 1-color cool white LED illumination, and operates on a supply voltage of 12Vdc to 30Vdc with a nominal 24Vdc. The dimensions of this product are 710mm in length and 28mm in width, constructed with a polycarbonate window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect connector, offering a linear light strip shape. This model has an IP50 degree of protection, suitable for surface or wall mounting, and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control and provides a luminous flux of 1500 lumens.

WLS28-2XW710DXPBQ Related Documents

175008.pdf

$404.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$404.00

$404.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty
