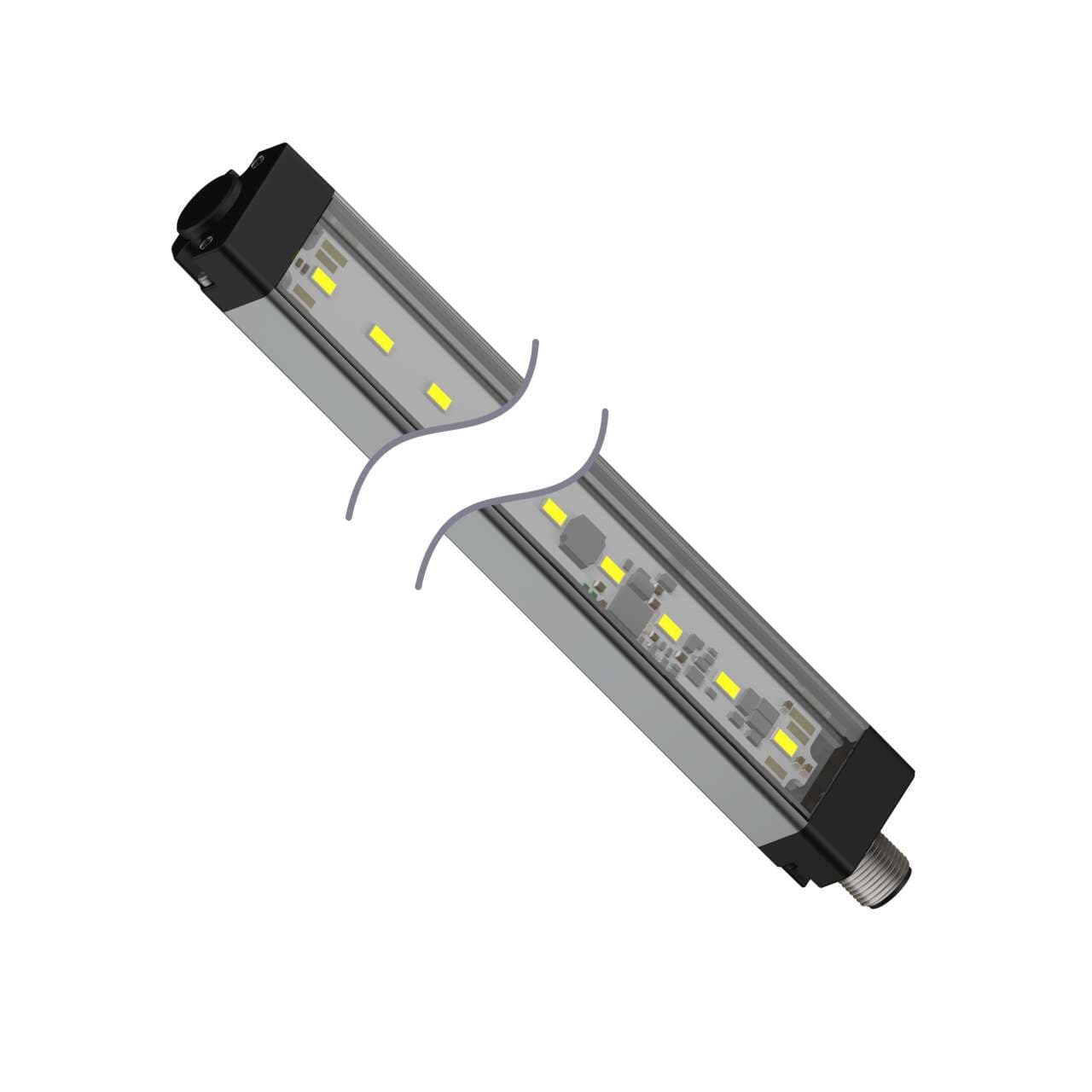

WLS28-2XWG-285DXQ Banner Light Bars

Name: WLS28-2XWG-285DXQ
Brand: Banner
Price: 234 USD
Availability: BackOrder

WLS28-2XWG-285DXQ on Powermatic Associates

Part#:WLS28-2XWG-285DXQ

Alt. Part#:97094

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Dual Color Light Strip; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Colors: White (100%) Green (100%); 4-pin M12 Integral QD; Diffuse Window

Product Details

Weight
362.8736 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Wireless
No
Modbus RTU
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Primary Window Material
Polycarbonate Diffused
Min Op. Temperature (°C)
-40
Storage Temp (°C)
-40 to 70
Max Op. Temperature (°C)
70
Environmental Rating
IP50
Physical Dimensions (LxWxH or DxH mm)
327.0 x 28.0 x 20.9
Illuminated Length (LxWxH mm)
285.0
Number of Input Pins/Conductors
4
Supply Voltage
12-30 V dc
Lumens Color 2
225
Color 2 - Wavelength/Color Temp/Coordinates
525 nm

Animation Option 2

Solid On

Connection

Integral QD

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Color Option 2

Green

Quick Disconnect Type

M12 (Euro)

Color Option 1

White

Animation Option 1

Solid On

Lumens Color 1

180

Color Technology

Standard LED

Product Size (mm)

Housing Style

Linear Strip

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Illumination

Yes

Primary Housing Material

Aluminum

Cable Length (m)

Mounting Thread

No Thread

Power Source

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XWG-285DXQ on Powermatic Associates is $234.00. Order now.

About the product

Banner Engineering WLS28-2XWG-285DXQ is a task light designed as an LED industrial strip light/bar with a diffused plastic window featuring a 2-color W/G color pattern LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L285mm x W28mm, constructed with a polycarbonate (PC) window and an aluminium housing. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. This linear light strip has an IP50 degree of protection, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -40°C to +70°C. The WLS28-2XWG-285DXQ features 2 x digital inputs (12-30Vdc) for color control and provides a luminous flux of 180 lm (lumens).

WLS28-2XWG-285DXQ Related Documents

181739.pdf
