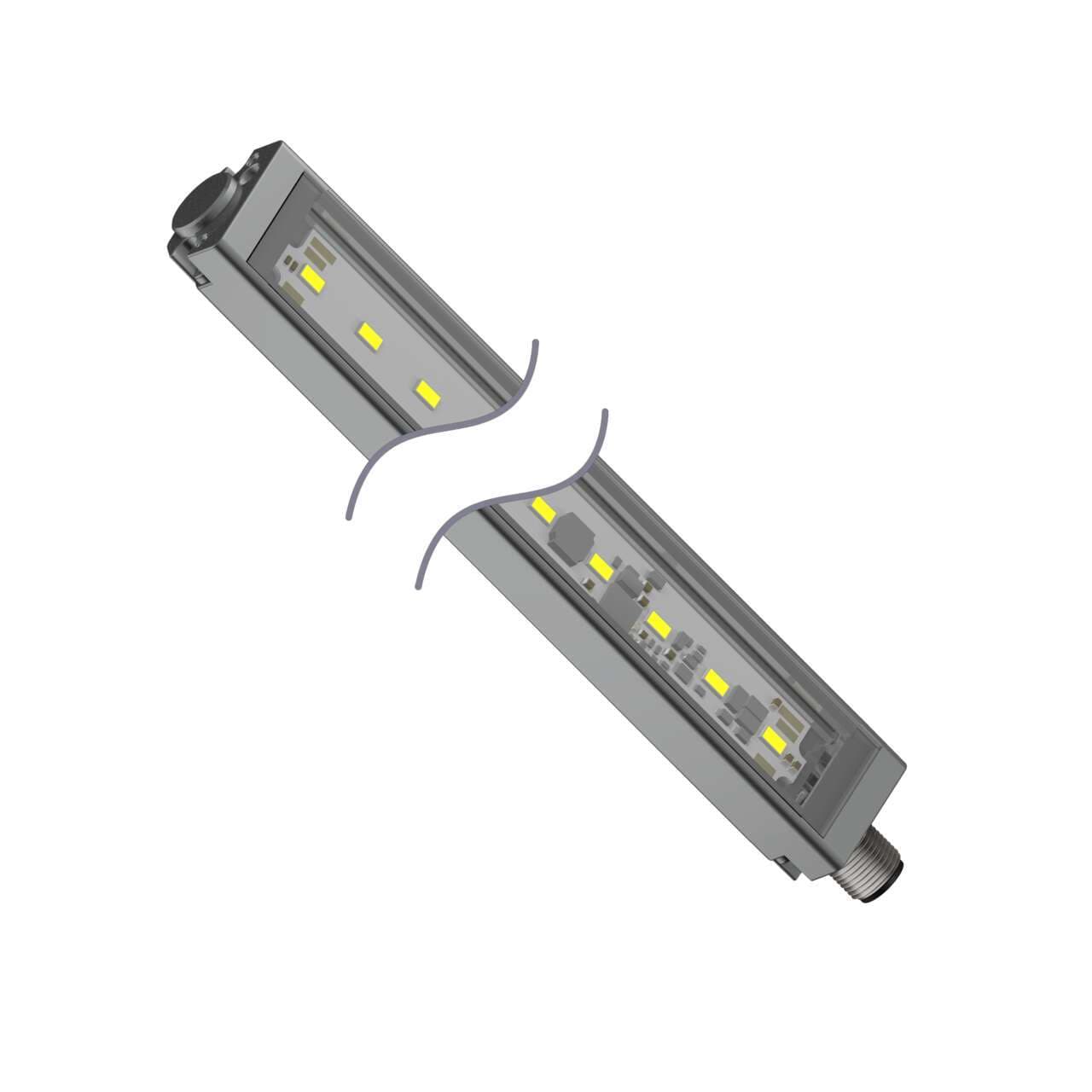

WLS28-2XWR-1130DSQ Banner Light Bars

Name: WLS28-2XWR-1130DSQ
Brand: Banner
Price: 783 USD
Availability: BackOrder

WLS28-2XWR-1130DSQ on Powermatic Associates

Part#:WLS28-2XWR-1130DSQ

Alt. Part#:801109

Manufacturer:Banner

Category:Light Bars

Product Lifecycle:Active

Product description

WLS28-2 Dual Color Light Strip; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Colors: White (100%) Red (100%); 4-pin M12 Integral QD; Diffuse Window

Product Details

Weight
997.9024 g
Country Of Origin
MX
Feature: Chemical Resistant
No
Pro-Editor Compatible (Discrete)
No
Wireless
No
IO Link
No
Modbus RTU
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Primary Window Material
Polycarbonate Diffused
Max Op. Temperature (°C)
70
Min Op. Temperature (°C)
-40
Storage Temp (°C)
-40 to 70
Environmental Rating
IP65; IP67; IP69
Physical Dimensions (LxWxH or DxH mm)
1172.0 x 28.0 x 20.9
Illuminated Length (LxWxH mm)
1130.0
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4
Color 2 - Wavelength/Color Temp/Coordinates
625 nm

Lumens Color 2

600

Animation Option 2

Solid On

Quick Disconnect Type

M12 (Euro)

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Color Option 2

Red

Lumens Color 1

1425

Connection

Integral QD

Animation Option 1

Solid On

Color Option 1

White

Color Technology

Standard LED

Illumination

Yes

Primary Housing Material

Aluminum

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Housing Style

Linear Strip

Mounting Thread

No Thread

Product Size (mm)

Number of Colors / Segments

Power Source

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XWR-1130DSQ on Powermatic Associates is $783.00. Order now.

About the product

Banner Engineering WLS28-2XWR-1130DSQ is a sealed LED industrial strip light designed for task lighting applications. It features a diffused plastic window with a 2-color white/red (W/R) color pattern LED illumination. This linear light strip operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of the light strip are 1130mm in length and 28mm in width. It is constructed with a polycarbonate (PC) window and an aluminium housing. The WLS28-2XWR-1130DSQ comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. It is designed for surface or wall mounting and offers a high degree of protection with IP65, IP67, and IP69K ratings, making it suitable for use in various environmental conditions. The ambient air temperature range for operation is between -40°C and +70°C. This model also includes 2 digital inputs (12-30Vdc) for color control and provides a luminous flux of 1425 lumens.

WLS28-2XWR-1130DSQ Related Documents

181739.pdf

$783.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$783.00

$783.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
