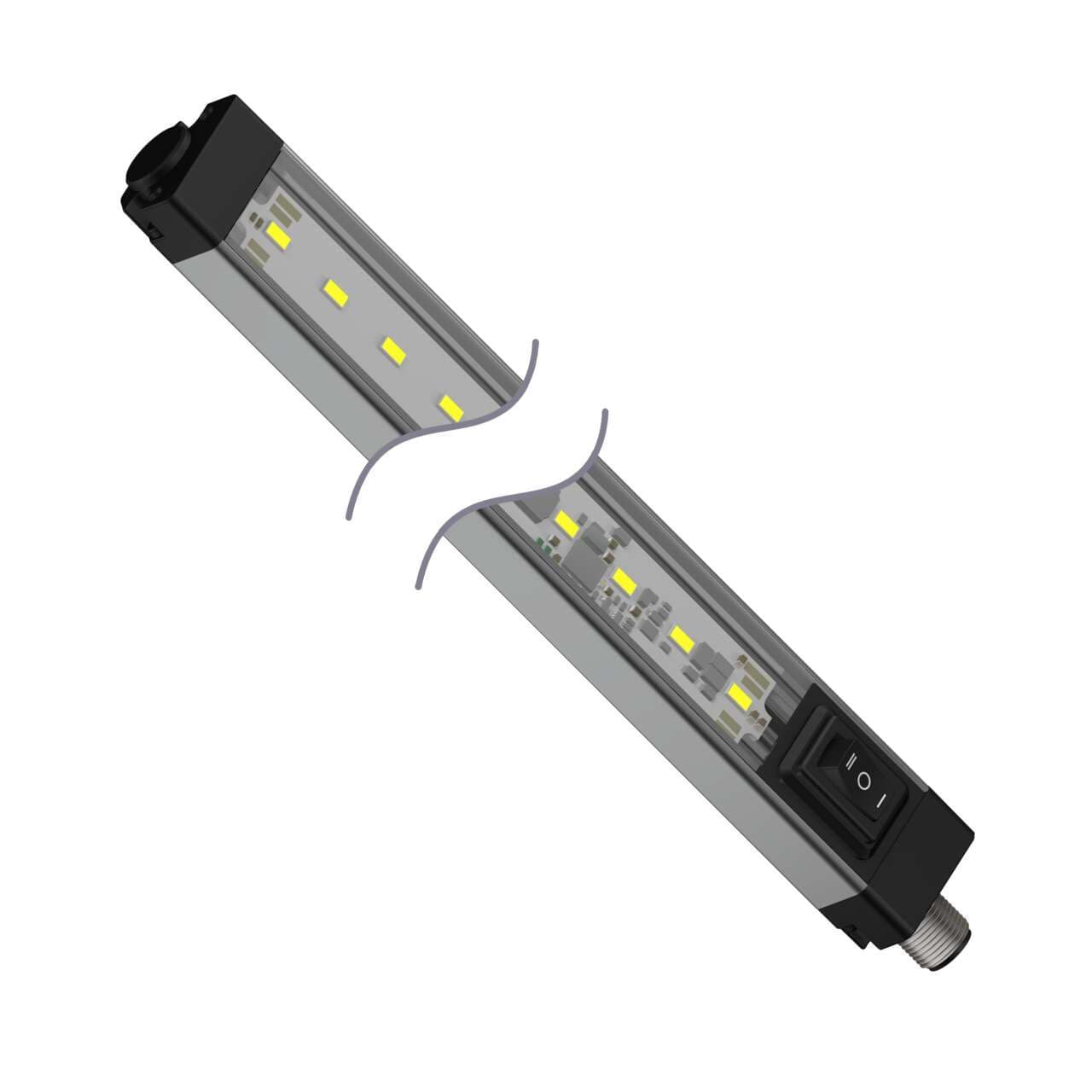

WLS28-2XWW285DXPBQ Banner Light Bars
Part#:WLS28-2XWW285DXPBQ
Alt. Part#:93011
Manufacturer:Banner
Category:Light Bars
Product Lifecycle:Active
Product description
WLS28-2 Work Light Strip; Switched; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: Warm White; 4-pin M12 Integral QD
Product Details
- Weight 331.12216 g
- Country Of Origin MX
- Mounting Thread No Thread
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 357.0 x 28.0 x 25.0
- Product Size (mm) 28
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Aluminum
- Lumens Color 1 600
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Color Technology Standard LED
- Power DC
- Illuminated Length (LxWxH mm) 285.0
- Feature: Chemical Resistant No
- Power Source DC
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option High-Low-Off
- Illumination Switch Function I=Low; O=OFF; II=High
- Quick Disconnect Type M12 (Euro)
- Modbus RTU No
- Number of Input Pins/Conductors 4
- Housing Style Linear Strip
- Environmental Rating IP50
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Max Op. Temperature (°C) 70
- IO Link No
- Number of Colors / Segments 1
- Color Option 1 White
- Feature: Hazardous Area No
- Color 1 - Wavelength/Color Temp/Coordinates 3000K (Warm)
- Illumination Yes
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28-2XWW285DXPBQ on Powermatic Associates is $204.00. Order now.
About the product
Banner Engineering WLS28-2XWW285DXPBQ is a LED industrial task strip light designed for a variety of lighting needs. It features a high/low/off switch, diffused plastic window for 1-color warm white LED illumination, and operates on a supply voltage of 12Vdc to 30Vdc with a nominal 24Vdc. The dimensions of this product are L285mm x W28mm, constructed with a polycarbonate window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect connector, making installation straightforward. This linear light strip is designed for surface or wall mounting, offers a degree of protection rated at IP50, and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 digital input (12-30Vdc) for color control and provides a luminous flux of 600 lumens.
WLS28-2XWW285DXPBQ Related Documents
Similar products from: Banner Light Bars
Manufacturer warranty
WLS28-2XWW285DXPBQ Banner
$204.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$204.00
$204.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare WLS28-2XWW285DXPBQ with other Light Bars products
Weight
Country Of Origin
Mounting Thread
Connection
Physical Dimensions (LxWx...
Product Size (mm)
Storage Temp (°C)
Pro-Editor Compatible (Di...
Primary Housing Material
Lumens Color 1
Selected product
WLS28-2XWW285DXPBQ
Banner
WLS28-2 Work Light Strip; Switched; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50;...
Weight331.12216 g
Country Of OriginMX
Mounting ThreadNo Thread
ConnectionIntegral QD
Physical Dimensions (LxWxH or DxH mm)357.0 x 28.0 x 25.0
Product Size (mm)28
Storage Temp (°C)-40 to 70
Pro-Editor Compatible (Discrete)No
Primary Housing MaterialAluminum
Lumens Color 1600
WLS28-2XW430DSQ
Banner
WLS28-2 Work Light Strip; Diffuse Window; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating:...
Weight453.592 g
Country Of OriginMX
Mounting ThreadNo Thread
ConnectionIntegral QD
Physical Dimensions (LxWxH or DxH mm)-
Product Size (mm)28
Storage Temp (°C)-
Pro-Editor Compatible (Discrete)-
Primary Housing MaterialAluminum
Lumens Color 1-
WLS28-2CW430DXPBQ
Banner
WLS28-2 Work Light Strip; Switched; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP50;...
Weight498.9512 g
Country Of OriginMX
Mounting ThreadNo Thread
ConnectionIntegral QD
Physical Dimensions (LxWxH or DxH mm)-
Product Size (mm)28
Storage Temp (°C)-
Pro-Editor Compatible (Discrete)-
Primary Housing MaterialAluminum
Lumens Color 1-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of WLS28-2XWW285DXPBQ?
Purchase the WLS28-2XWW285DXPBQ from Powermatic Associates at the price of $204.00. Order today.
Out if stock but available for backorder.
WLS28-2 Work Light Strip; Switched; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: Warm White; 4-pin M12 Integral QD
