Product description

WLS28 Pro Light Strip; 25 Deg Translucent Lens; Length: 570 mm; Voltage: 18-30 V dc; Environmental Rating: IP50; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD

Product Details

  • Weight
    635.0288 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    Yes
  • USB
    No
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Multi-Color Device
    Simultaneous Colors On
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Acrylic Diffused
  • Min Op. Temperature (°C)
    -40
  • Lens Focusing Angle (°)/Field of View
    25
  • Environmental Rating
    IP50
  • Storage Temp (°C)
    -40 to 70
  • Physical Dimensions (LxWxH or DxH mm)
    608.0 x 28.0 x 20.9
  • Illuminated Length (LxWxH mm)
    570
  • Max Input Response Time (ms)
    300
  • I/O Block Compatible
    Yes
  • Supply Voltage
    18-30 V dc
  • Wire Selectable Function
    Programmable
  • Number of Input Pins/Conductors
    4
  • Dimming Option
    Programmable
  • Max Current Color (mA)
    1100
  • Quick Disconnect Type
    M12 (Euro)
  • Animation Option 1
    See Configuration File
  • Color Option 1
    RGBW
  • Connection
    Integral QD
  • Number of Tower Light Segments
    Programmable
  • Color Technology
    RGB Configurable
  • Product Size (mm)
    28
  • Indication
    Yes
  • Color Input Control
    Multiple (One or more wires/color, enables more colors than input wires)
  • Number of Colors / Segments
    19
  • Mounting Thread
    No Thread
  • Illumination
    Yes
  • Primary Housing Material
    Aluminum
  • Housing Style
    Linear Strip
  • PFM Input
    Yes
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS28PXRGBW570L25DXQ on Powermatic Associates is $474.00. Order now.

About the product

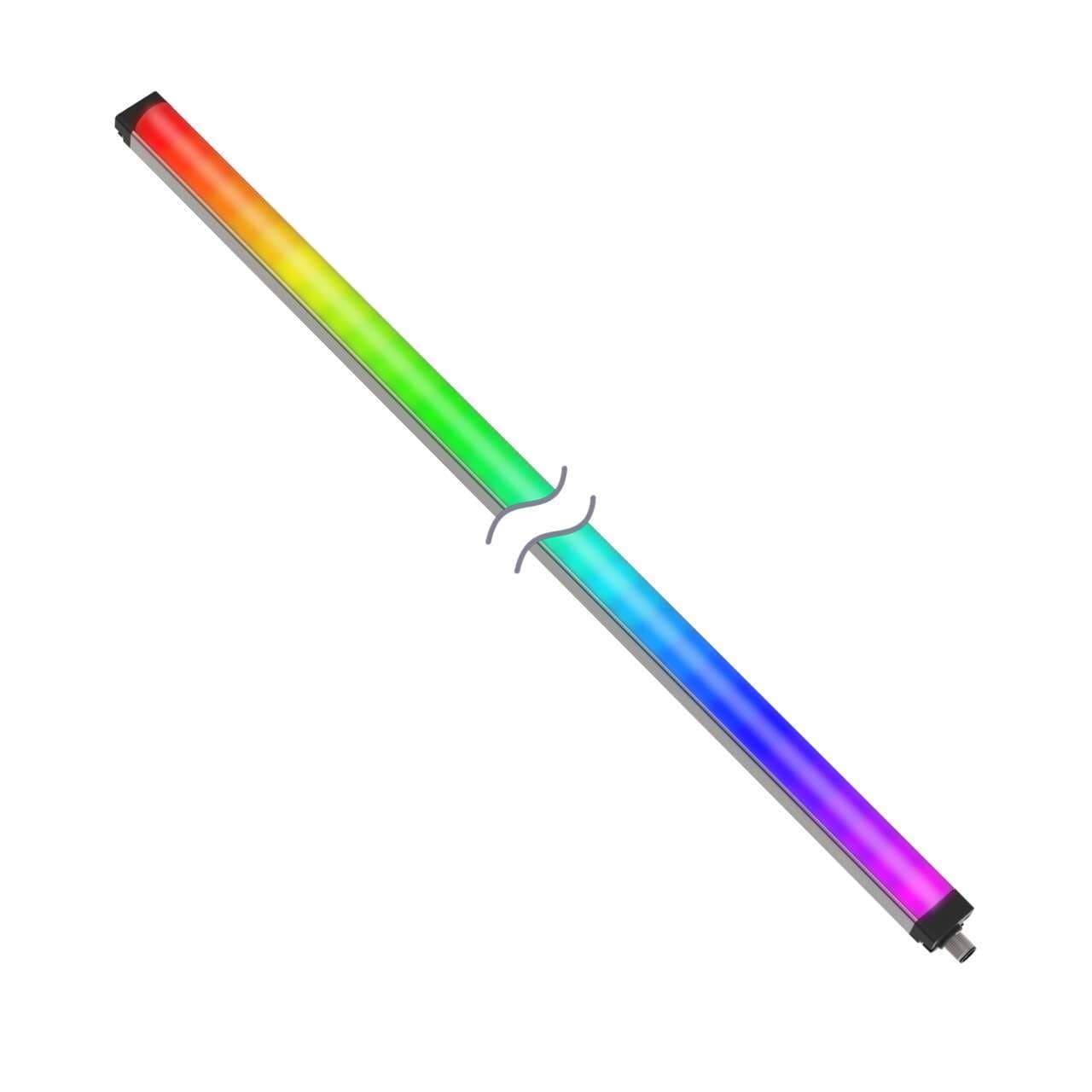

Banner Engineering WLS28PXRGBW570L25DXQ is a task light designed as an LED industrial strip light/bar featuring a 25° diffused window for 7-color multicolor LED illumination. It operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L570mm x W28mm, constructed with an acrylic window and a clear anodized aluminum housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. This linear light strip is designed for surface or wall mounting and offers a degree of protection rated at IP50. It is suitable for operation in ambient air temperatures ranging from -40°C to +50°C and includes 3 digital inputs (18-30Vdc) for color control.
