1002528 Festo Process & Media Valves

Name: 1002528
Brand: Festo

Part#:1002528

Alt. Part#:VZXF-L-M22C-M-B-G114-310-M1-V4V4T-80-10

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

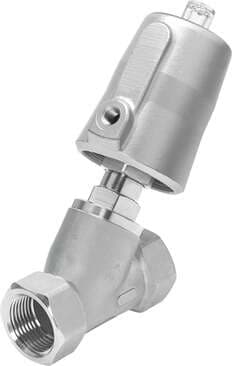

angle seat valve VZXF-L-M22C-M-B-G114-310-M1-V4V4T-80-10 Pneumatically actuated angle seat valve in stainless steel. Under seat version, safety position closed, G thread, nominal width 1 1/4". Design structure: Poppet valve with piston actuator, Type of a

Product Details

Spindle seal material
PTFE
Sealing principle
Soft
Nominal width
31 mm
Nominal pressure of fitting PN
40
Medium
Vapor Neutral liquids
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Actuation type
Pneumatic
Type of mounting
Line installation
Flow direction
Under valve seat, for gaseous and liquid media
Reset method
Mechanical spring
Pneumatic connection
Internal thread G1/8
Ambient temperature
-10 °C ... 60 °C
Flow rate Kv
17.5 m³/h
CE marking (see declaration of conformity)
as per EU pressure equipment directive
Type code
VZXF
Cable connection
Threaded sleeve G1 1/4 as per DIN ISO 228
Exhaust air function
Without flow control option
Medium pressure
0 bar ... 10 bar
Symbol
00991367
Temperature of medium
-40 °C ... 200 °C

Product weight

3800 g

Design

Poppet valve with piston actuator

Mounting position

Any

Valve function

2/2, closed, monostable

Type of control

Externally controlled

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Valve housing material

Cast stainless steel

Material number, fitting housing

1.4408

Corrosion resistance class (CRC)

3 - High corrosion stress

Operating pressure

6 bar ... 10 bar

Max. viscosity

600 mm²/s

Seat seal material

PTFE

Drive housing material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
