1002544 Festo Process & Media Valves
Part#:1002544
Alt. Part#:VZXF-L-M22C-M-B-N2-430-H3B1-50-3
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

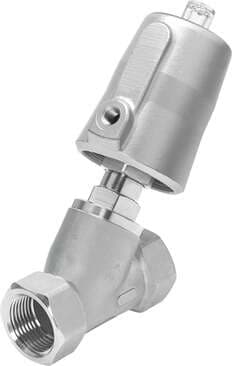

angle seat valve VZXF-L-M22C-M-B-N2-430-H3B1-50-3 Pneumatically actuated angle seat valve in red brass. Under seat version, safety position closed, NPT thread, nominal width 2". Design structure: Poppet valve with piston actuator, Type of actuation: pneum
Product Details
- Actuation type Pneumatic
- Nominal width 43 mm
- Medium pressure 0 bar ... 3 bar
- Medium Vapor Neutral liquids
- Sealing principle Soft
- Cable connection Threaded sleeve NPT2 as per ANSI/ASME B 1.20.1
- Flow rate Kv 23 m³/h
- Type code VZXF
- Mounting position Any
- Type of control Externally controlled
- Max. viscosity 600 mm²/s
- Material number, fitting housing CC499K
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Exhaust air function Without flow control option
- Reset method Mechanical spring
- Temperature of medium -10 °C ... 80 °C
- Ambient temperature -10 °C ... 60 °C
- Seat seal material PTFE
- Drive housing material Brass
- Design Poppet valve with piston actuator
- Type of mounting Line installation
- Valve function 2/2, closed, monostable
- Operating pressure 6 bar ... 10 bar
- Symbol 00991367
- Spindle seal material NBR
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Flow direction Under valve seat, for gaseous and liquid media
- Nominal pressure of fitting PN 16
- Pneumatic connection Internal thread G1/8
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 2800 g
- Valve housing material Red brass
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
