1002546 Festo Process & Media Valves

Name: 1002546
Brand: Festo

Part#:1002546

Alt. Part#:VZXF-L-M22C-M-B-N12-130-M1-V4V4T-50-40

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

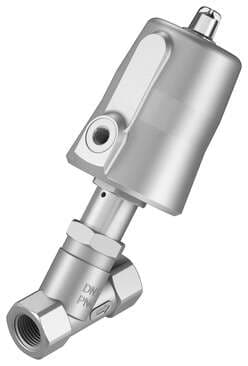

angle seat valve VZXF-L-M22C-M-B-N12-130-M1-V4V4T-50-40 Pneumatically actuated angle seat valve in stainless steel. Under seat version, safety position closed, NPT thread, nominal width 1/2". Design structure: Poppet valve with piston actuator, Type of ac

Product Details

Sealing principle
Soft
Valve function
2/2, closed, monostable
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Flow rate Kv
3.3 m³/h
Corrosion resistance class (CRC)
3 - High corrosion stress
Mounting position
Any
Flow direction
Under valve seat, for gaseous and liquid media
Reset method
Mechanical spring
Symbol
00991367
Medium
Vapor Neutral liquids
Seat seal material
PTFE
Drive housing material
High-alloy stainless steel
Type code
VZXF
Type of mounting
Line installation
Medium pressure
0 bar ... 40 bar
Type of control
Externally controlled
Max. viscosity
600 mm²/s
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Product weight
1300 g
Actuation type
Pneumatic

Nominal width

13 mm

Exhaust air function

Without flow control option

Pneumatic connection

Internal thread G1/8

Temperature of medium

-40 °C ... 200 °C

Valve housing material

Cast stainless steel

Spindle seal material

PTFE

Design

Poppet valve with piston actuator

Cable connection

Threaded sleeve NPT1/2 as per ANSI/ASME B 1.20.1

Nominal pressure of fitting PN

Operating pressure

6 bar ... 10 bar

Ambient temperature

-10 °C ... 60 °C

Material number, fitting housing

1.4408

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1002546 Related Documents

1002546 DataSheet.pdf

Manufacturer warranty

1002546 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Valves are tools that manage, adjust, or guide the flow within a system or process. They perform multiple roles including initiating or halting flow, managing flow and pressure, determining the flow direction, and controlling flow speeds.
