1068198 Festo Electrical Connectors

1068198 on Powermatic Associates
Festo

Part#:1068198

Alt. Part#:NECU-S-M8G4-C2

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

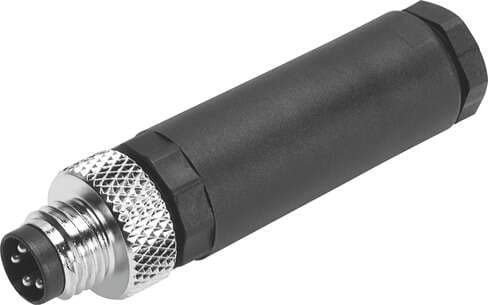

plug NECU-S-M8G4-C2 Conforms to standard: EN 61076-2-104, Connection frequency: 100, Cable outlet: Straight, Product weight: 9,1 g, Electrical connection 1, design: Round

Product Details

  • Type code
    NECU
  • Electrical connection 1, design
    Round
  • Electrical connection 1, number of pins/wires
    4
  • Cable diameter
    3.5 mm ... 5 mm
  • Nominal conductor cross section
    0.14 mm² ... 0.5 mm²
  • Material of screw-type lock
    Brass, nickel-plated
  • Product weight
    9.1 g
  • Electrical connection 2, connection technology
    Screw terminal
  • Surge resistance
    0.8 kV
  • Contamination level
    3
  • Housing material
    PA
  • Contact durability
    100
  • Electrical connection 1, type of mounting
    Screw-type lock with AF 9
  • DC operating voltage range
    0 V ... 30 V
  • Ambient temperature
    -25 °C ... 85 °C
  • Note on materials
    RoHS-compliant
  • Housing colour
    Black
  • Conforms to standard
    EN 61076-2-104
  • Electrical connection 1, connection type
    Plug
  • Electrical connection for input 1, connection pattern
    00991171
  • Current rating at 40°C
    4 A
  • Note on degree of protection
    In mounted state
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Cable outlet
    Straight
  • Electrical connection 1, connection technology
    M8x1 A-coded as per EN 61076-2-104
  • Operating voltage range AC
    0 V ... 30 V
  • Degree of protection
    IP67
  • Material of pin contacts
    Brass, gold-plated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
