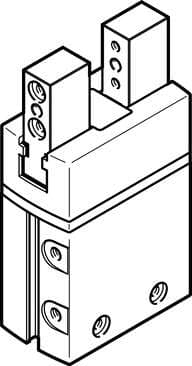

1254048 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Type code
  DHPS
• Design
  Lever Positively driven motion sequence
• Symbol
  00991895
• Min. closing time at 6 bar
  62 ms
• Maximum torque on gripper jaw, My static
  14 Nm
• Maximum torque on gripper jaw, Mz static
  14 Nm
• Housing material
  Wrought aluminum alloy Hard-anodized
• Stroke per gripper jaw
  6.5 mm
• Number of gripper jaws
  2
• Guide
  Sliding guide
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  5 °C ... 60 °C
• Gripper jaw material
  High-alloy stainless steel
• Max. gripper jaw backlash Sz
  < 0.02 mm
• Mode of operation
  Double-acting
• Gripper function
  Parallel
• Operating pressure
  4 bar ... 8 bar
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Maximum force on gripper jaw Fz, static
  250 N
Max. mass per external gripper finger
250 g
Pneumatic connection
M5
Max. gripper jaw angular play ax, ay
< 0.5 deg
Mounting position
Any
Pneumatic gripper repetition accuracy
< 0.02 mm
Position sensing
For proximity sensor
Min. opening time at 6 bar
72 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, Mx static
14 Nm
Relubrication interval for guidance elements
10 MioCyc
Type of mounting
Optionally: Via through-hole and centering sleeve
Cover cap material
PA
Size
20
Rotational symmetry
≤ 0.2 mm
Gripping force backup
During closing
Max. operating frequency of pneumatic gripper
3 Hz
Mass moment of inertia
1.494 kgcm²
Product weight
387 g
Note on materials
RoHS-compliant
