130616 Festo Pneumatic Fittings
Part#:130616
Alt. Part#:QST-16-12
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

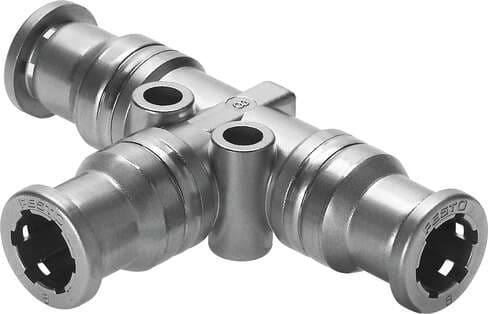

push-in T-connector QST-16-12 reducing. Size: Standard, Nominal size: 7,6 mm, Assembly position: Any, Container size: 1, Design structure: Push/pull principle
Product Details
- Nominal width 7.6 mm
- Product weight 45 g
- Releasing ring color Blue
- Size Standard
- Mounting position Any
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Maritime classification See certificate
- Pack size 1
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- No. of supply lines 1
- Note on materials RoHS-compliant
- Type code QST
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Pneumatic connection 1 for pneumatic tubing outside diameter 16 mm
- Material of tubing seal NBR
- Design Push-pull principle
- Information on operating and pilot media Operation with oil lubrication possible
- No. of outlets 2
- Housing material PBT
- Material of tube retaining claw High-alloy stainless steel
- Ambient temperature -10 °C ... 80 °C
- Pneumatic connection 2 for pneumatic tubing outside diameter 12 mm
- Releasing ring material POM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
