132941 Festo Pneumatic Fittings
Part#:132941
Alt. Part#:QSPLKG14-5/16-U
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

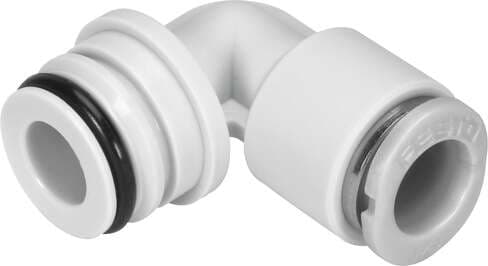

cartridge QSPLKG14-5/16-U Size: Standard, Nominal size: 4,8 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle
Product Details
- Maritime classification See certificate
- Design Push-pull principle
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Information on operating and pilot media Operation with oil lubrication possible
- Pneumatic connection 1 QSP...14
- Releasing ring color Gray
- Housing material PA-reinforced
- Nominal width 4.8 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Operating pressure for entire temperature range -0.95 bar ... 10 bar
- Size Standard
- Mounting position Any
- Ambient temperature -5 °C ... 60 °C
- Material of tube retaining claw High-alloy stainless steel
- Type code QSPLKG
- Pack size 10
- Product weight 7.1 g
- Material of tubing seal NBR
- Pneumatic connection 2 for pneumatic tubing outside diameter 5/16"
- Releasing ring material POM
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
