132944 Festo Pneumatic Fittings

132944 on Powermatic Associates
Festo

Part#:132944

Alt. Part#:QSPLLKG14-1/4-U

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

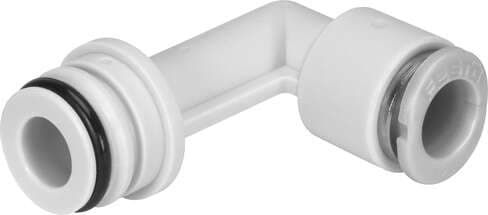

cartridge QSPLLKG14-1/4-U Size: Mini, Nominal size: 3,4 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

Product Details

  • Nominal width
    3.4 mm
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 2
    for pneumatic tubing outer diameter 1/4"
  • Size
    Mini
  • Mounting position
    Any
  • Design
    Push-pull principle
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Releasing ring color
    Gray
  • Pack size
    10
  • Pneumatic connection 1
    QSP...14
  • Housing material
    PA-reinforced
  • Maritime classification
    See certificate
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Ambient temperature
    -5 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Releasing ring material
    POM
  • Type code
    QSPLLKG
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Product weight
    3.9 g
  • Material of tubing seal
    NBR
  • Material of tube retaining claw
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

132944 Related Documents

132944 DataSheet.pdf
