133031 Festo Pneumatic Fittings
Part#:133031
Alt. Part#:QSML-M5-2
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

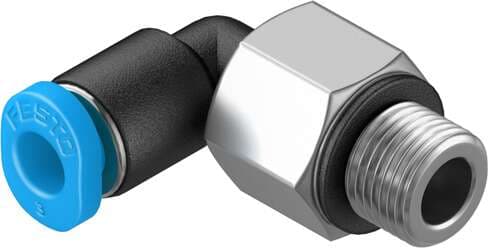

push-in L-fitting QSML-M5-2 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10
Product Details
- Size Mini
- Type of seal on screwed trunnion Sealing ring
- Design Push-pull principle
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Releasing ring color Blue
- Mounting position Any
- Information on operating and pilot media Operation with oil lubrication possible
- Pneumatic connection 1 External thread M5
- Material of tubing seal NBR
- Maritime classification See certificate
- Pack size 10
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Product weight 2.7 g
- Pneumatic connection 2 for pneumatic tubing outside diameter 2 mm
- Note on materials RoHS-compliant
- Nominal width 0.9 mm
- Operating pressure for entire temperature range -0.95 bar ... 6 bar
- Nominal tightening torque 1.33 Nm
- Ambient temperature -10 °C ... 80 °C
- Material of tube retaining claw High-alloy stainless steel
- Type code QSML
- Temperature-dependent operating pressure -0.95 bar ... 14 bar
- Tolerance for nominal tightening torque ± 20%
- Housing material PBT
- Releasing ring material POM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
