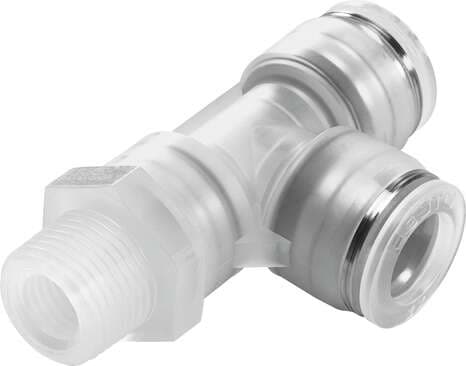

133068 Festo Pneumatic Fittings
Part#:133068
Alt. Part#:NPQP-LQ-R38-Q10-FD-P10
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description
push-in L-fitting NPQP-LQ-R38-Q10-FD-P10 Size: Standard, Nominal size: 5,8 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar
Product Details
- Nominal width 5.8 mm
- Type code NPQP
- Pack size 10
- Information on operating and pilot media Operation with oil lubrication possible
- Housing material PP
- Size Standard
- Design Push-pull principle
- Temperature-dependent operating pressure -0.95 bar ... 10 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Ambient temperature -20 °C ... 60 °C
- Product weight 19 g
- Pneumatic connection 1 R3/8
- Material of tube retaining claw High-alloy stainless steel
- Pneumatic connection 2 for pneumatic tubing outside diameter 10 mm
- Corrosion resistance class (CRC) 4 - Particularly high corrosion stress
- For use in the food industry See supplementary material information
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
