133080 Festo Pneumatic Fittings

133080 on Powermatic Associates
Festo

Part#:133080

Alt. Part#:NPQP-T-R12-Q12-FD

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

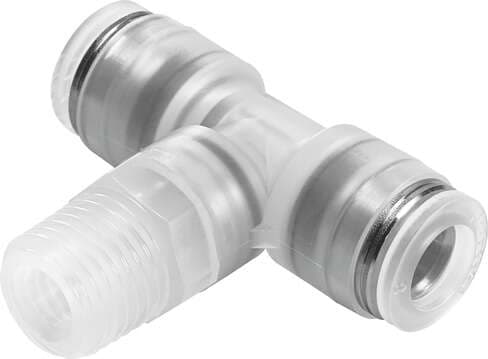

push-in T-fitting NPQP-T-R12-Q12-FD Size: Standard, Nominal size: 6,9 mm, Container size: 1, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Product Details

  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Product weight
    28 g
  • Nominal width
    6.9 mm
  • Temperature-dependent operating pressure
    -0.95 bar ... 10 bar
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 12 mm
  • Type code
    NPQP
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Ambient temperature
    -20 °C ... 60 °C
  • Material of tube retaining claw
    High-alloy stainless steel
  • Size
    Standard
  • Design
    Push-pull principle
  • For use in the food industry
    See supplementary material information
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Pack size
    1
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 1
    R1/2
  • Housing material
    PP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

133080 Related Documents

133080 DataSheet.pdf
