133125 Festo Pneumatic Fittings

133125 on Powermatic Associates
Festo

Part#:133125

Alt. Part#:NPQP-Y-Q8-Q6-FD-P10

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

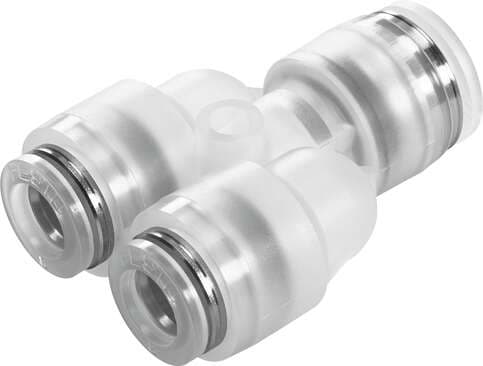

push-in Y-connector NPQP-Y-Q8-Q6-FD-P10 Size: Standard, Nominal size: 3,6 mm, Container size: 10, Design structure: Push/pull principle, Temperature dependent operating pressure: -0,95 - 10 bar

Product Details

  • Pack size
    10
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Size
    Standard
  • Type code
    NPQP
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • For use in the food industry
    See supplementary material information
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 6 mm
  • Nominal width
    3.6 mm
  • Design
    Push-pull principle
  • Pneumatic connection 1
    for pneumatic tubing outside diameter 8 mm
  • Material of tube retaining claw
    High-alloy stainless steel
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Ambient temperature
    -20 °C ... 60 °C
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Temperature-dependent operating pressure
    -0.95 bar ... 10 bar
  • Product weight
    11.5 g
  • Housing material
    PP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
