1359980 Festo Pneumatic Actuators

1359980 on Powermatic Associates
Festo

Part#:1359980

Alt. Part#:DRRD-25-180-FH-PA

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

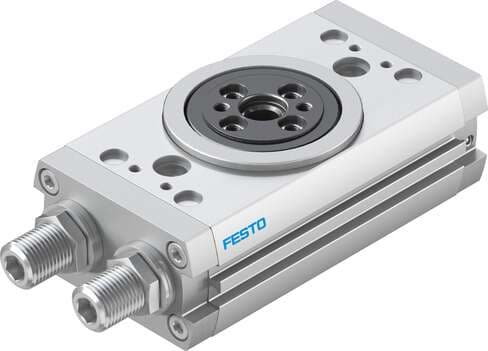

semi-rotary drive DRRD-25-180-FH-PA Size: 25, Cushioning angle: 33 deg, Setting range of swivel angle on both sides: +10 /-100 deg, Swivel angle: 180 deg, Cushioning: P: Flexible cushioning rings/plates at both ends

Product Details

  • Cushioning angle
    33 deg
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Mode of operation
    Double-acting
  • Theoretical torque at 6 bar
    5.15 Nm
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Adjustment range of swivel angle, both sides
    +10 /-100 deg
  • Design
    Gear rack/pinion
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Size
    25
  • Type code
    DRRD
  • Symbol
    00991265
  • Position sensing
    For proximity sensor
  • Pneumatic connection
    M5
  • Housing material
    Wrought aluminum alloy Smooth anodized
  • Mounting position
    Any
  • Ambient temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With internal thread
  • Cover material
    Wrought aluminum alloy Anodized
  • Swivel angle
    180 deg
  • Operating pressure
    0.3 MPa ... 0.8 MPa
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Permissible mass moment of inertia
    0.09 kgm²
  • Drive shaft material
    Tempered steel
  • Product weight
    1349 g
  • Seals material
    NBR TPE-U(PU)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1359980 Related Documents

1359980 DataSheet.pdf
