1376422 Festo Pneumatic Actuators

Name: 1376422
Brand: Festo

Part#:1376422

Alt. Part#:DSBC-32-25-PPVA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

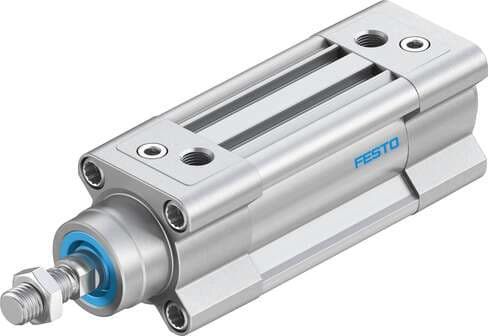

standards-based cylinder DSBC-32-25-PPVA-N3 With adjustable cushioning at both ends. Stroke: 25 mm, Piston diameter: 32 mm, Piston rod thread: M10x1,25, Cushioning: PPV: Pneumatic cushioning adjustable at both ends, Assembly position: Any

Product Details

Piston rod wiper seal material
TPE-U(PU)
Flange screws material
Steel, galvanized
Nut material
Steel, galvanized
Conforms to standard
ISO 15552
Design
Piston Profile barrel
Mode of operation
Double-acting
Cushioning length
17 mm
Theoretical force at 6 bar, advancing
483 N
Basic weight with 0 mm stroke
465 g
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Piston diameter
32 mm
Piston rod end
External thread
Variants
Piston rod at one end
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Additional weight per 10 mm stroke
27 g
Pneumatic connection
G1/8
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Cushion piston material
POM

Stroke

25 mm

Material of bearing

POM

Cushioning

Pneumatic cushioning, adjustable at both ends

Position sensing

For proximity sensor

Ambient temperature

-20 °C ... 80 °C

Theoretical force at 6 bar, retracting

415 N

Type of mounting

Optionally: With accessories

Type code

DSBC

Mounting position

Any

Operating pressure

0.06 MPa ... 1.2 MPa

Impact energy in the end positions

0.4 J

Moving mass at 0 mm stroke

110 g

Note on materials

RoHS-compliant

Piston rod material

High-alloy steel

Buffer seal material

TPE-U(PU)

Piston rod thread

M10x1.25

Symbol

00991235

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Additional moving mass per 10 mm stroke

9 g

Cover material

Die-cast aluminum, coated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1376422 Related Documents

1376422 DataSheet.pdf
