1376431 Festo Pneumatic Actuators

1376431 on Powermatic Associates
Festo

Part#:1376431

Alt. Part#:DSBC-32-320-PPVA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

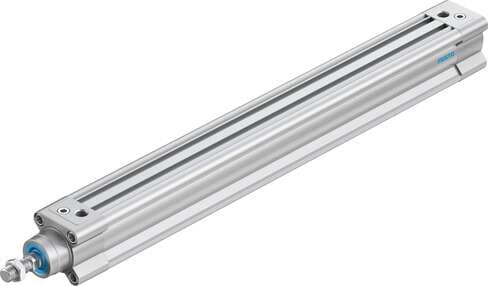

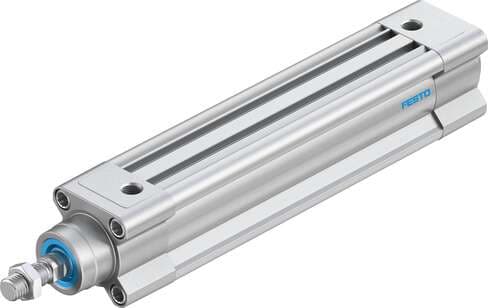

standards-based cylinder DSBC-32-320-PPVA-N3 With adjustable cushioning at both ends. Stroke: 320 mm, Piston diameter: 32 mm, Piston rod thread: M10x1,25, Cushioning: PPV: Pneumatic cushioning adjustable at both ends, Assembly position: Any

Product Details

  • Piston seal material
    TPE-U(PU)
  • Material of piston
    Wrought aluminum alloy
  • Stroke
    320 mm
  • Type code
    DSBC
  • Piston rod wiper seal material
    TPE-U(PU)
  • Flange screws material
    Steel, galvanized
  • Cushioning
    Pneumatic cushioning, adjustable at both ends
  • Design
    Piston Profile barrel
  • Variants
    Piston rod at one end
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Impact energy in the end positions
    0.4 J
  • Additional weight per 10 mm stroke
    27 g
  • Type of mounting
    Optionally: With accessories
  • Piston rod material
    High-alloy steel
  • Nut material
    Steel, galvanized
  • Piston rod thread
    M10x1.25
  • Position sensing
    For proximity sensor
  • Mode of operation
    Double-acting
  • Ambient temperature
    -20 °C ... 80 °C
  • Moving mass at 0 mm stroke
    110 g
  • Cover material
    Die-cast aluminum, coated
  • Material of cylinder barrel
    Wrought aluminum alloy, smooth-anodized
  • Cushion piston material
    POM
  • Piston diameter
    32 mm
  • Conforms to standard
    ISO 15552
  • Symbol
    00991235
  • Theoretical force at 6 bar, advancing
    483 N
  • Pneumatic connection
    G1/8
  • Buffer seal material
    TPE-U(PU)
  • Material of bearing
    POM
  • Mounting position
    Any
  • Piston rod end
    External thread
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Cushioning length
    17 mm
  • Basic weight with 0 mm stroke
    465 g
  • Note on materials
    RoHS-compliant
  • Operating pressure
    0.06 MPa ... 1.2 MPa
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Theoretical force at 6 bar, retracting
    415 N
  • Additional moving mass per 10 mm stroke
    9 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
