1376432 Festo Pneumatic Actuators

Name: 1376432
Brand: Festo

Part#:1376432

Alt. Part#:DSBC-32-400-PPVA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

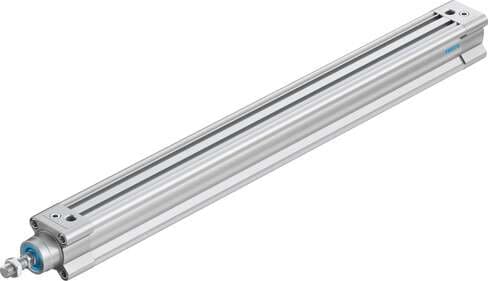

standards-based cylinder DSBC-32-400-PPVA-N3 With adjustable cushioning at both ends. Stroke: 400 mm, Piston diameter: 32 mm, Piston rod thread: M10x1,25, Cushioning: PPV: Pneumatic cushioning adjustable at both ends, Assembly position: Any

Product Details

Piston rod wiper seal material
TPE-U(PU)
Stroke
400 mm
Design
Piston Profile barrel
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Impact energy in the end positions
0.4 J
Theoretical force at 6 bar, advancing
483 N
Basic weight with 0 mm stroke
465 g
Piston rod material
High-alloy steel
Piston seal material
TPE-U(PU)
Material of piston
Wrought aluminum alloy
Flange screws material
Steel, galvanized
Piston rod thread
M10x1.25
Mounting position
Any
Variants
Piston rod at one end
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
Optionally: With accessories
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Cushion piston material
POM
Nut material
Steel, galvanized
Cushioning
Pneumatic cushioning, adjustable at both ends

Symbol

00991235

Position sensing

For proximity sensor

Ambient temperature

-20 °C ... 80 °C

Theoretical force at 6 bar, retracting

415 N

Additional weight per 10 mm stroke

27 g

Note on materials

RoHS-compliant

Piston diameter

32 mm

Piston rod end

External thread

Operating pressure

0.06 MPa ... 1.2 MPa

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Additional moving mass per 10 mm stroke

9 g

Buffer seal material

TPE-U(PU)

Material of bearing

POM

Type code

DSBC

Conforms to standard

ISO 15552

Mode of operation

Double-acting

Cushioning length

17 mm

Moving mass at 0 mm stroke

110 g

Pneumatic connection

G1/8

Cover material

Die-cast aluminum, coated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
