1376667 Festo Pneumatic Actuators

Name: 1376667
Brand: Festo

Part#:1376667

Alt. Part#:DSBC-40-500-PPVA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

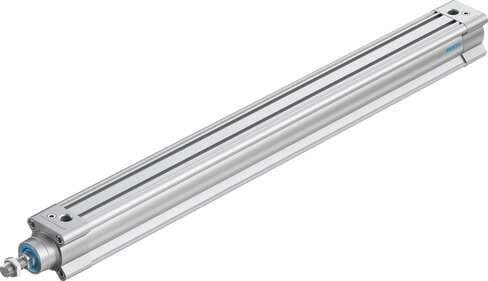

standards-based cylinder DSBC-40-500-PPVA-N3 With adjustable cushioning at both ends. Stroke: 500 mm, Piston diameter: 40 mm, Piston rod thread: M12x1,25, Cushioning: PPV: Pneumatic cushioning adjustable at both ends, Assembly position: Any

Product Details

Buffer seal material
TPE-U(PU)
Material of bearing
POM
Type code
DSBC
Variants
Piston rod at one end
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Theoretical force at 6 bar, retracting
633 N
Pneumatic connection
G1/4
Piston rod material
High-alloy steel
Piston rod wiper seal material
TPE-U(PU)
Stroke
500 mm
Cushioning
Pneumatic cushioning, adjustable at both ends
Symbol
00991235
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Cushioning length
19 mm
Additional weight per 10 mm stroke
37 g
Cover material
Die-cast aluminum, coated
Note on materials
RoHS-compliant
Cushion piston material
POM
Flange screws material
Steel, galvanized
Design
Piston Profile barrel

Mode of operation

Double-acting

Impact energy in the end positions

0.7 J

Additional moving mass per 10 mm stroke

16 g

Piston seal material

TPE-U(PU)

Material of piston

Wrought aluminum alloy

Piston diameter

40 mm

Mounting position

Any

Piston rod end

External thread

Operating pressure

0.06 MPa ... 1.2 MPa

Ambient temperature

-20 °C ... 80 °C

Moving mass at 0 mm stroke

205 g

Basic weight with 0 mm stroke

740 g

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Nut material

Steel, galvanized

Piston rod thread

M12x1.25

Conforms to standard

ISO 15552

Position sensing

For proximity sensor

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Theoretical force at 6 bar, advancing

754 N

Type of mounting

Optionally: With accessories

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
