1376903 Festo Pneumatic Actuators

Name: 1376903
Brand: Festo

Part#:1376903

Alt. Part#:DSBC-40-25-PPSA-N3

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

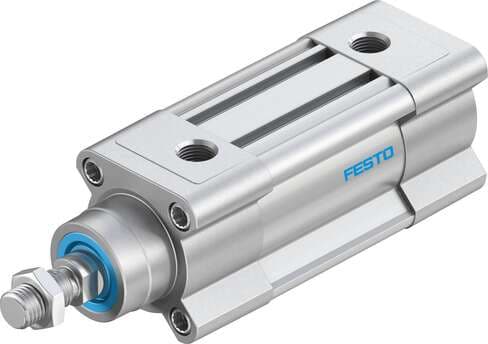

standards-based cylinder DSBC-40-25-PPSA-N3 with self-adjusting pneumatic end position cushioning Stroke: 25 mm, Piston diameter: 40 mm, Piston rod thread: M12x1,25, Cushioning: PPS: Self-adjusting pneumatic end-position cushioning, Assembly position: Any

Product Details

Nut material
Steel, galvanized
Piston rod thread
M12x1.25
Conforms to standard
ISO 15552
Operating pressure
0.06 MPa ... 1.2 MPa
Cushioning length
19 mm
Piston seal material
TPE-U(PU)
Material of bearing
POM
Piston rod end
External thread
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Buffer seal material
TPE-U(PU)
Stroke
25 mm
Type code
DSBC
Design
Piston Profile barrel
Mode of operation
Double-acting
Piston rod wiper seal material
TPE-U(PU)
Flange screws material
Steel, galvanized
Cushioning
Self-adjusting pneumatic end-position cushioning
Symbol
00992970
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Theoretical force at 6 bar, advancing
754 N

Basic weight with 0 mm stroke

740 g

Piston rod material

High-alloy steel

Cushion piston material

POM

Material of piston

Wrought aluminum alloy

Piston diameter

40 mm

Mounting position

Any

Variants

Piston rod at one end

Position sensing

For proximity sensor

Theoretical force at 6 bar, retracting

633 N

Impact energy in the end positions

0.7 J

Additional moving mass per 10 mm stroke

16 g

Material of cylinder barrel

Wrought aluminum alloy, smooth-anodized

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Ambient temperature

-20 °C ... 80 °C

Type of mounting

Optionally: With accessories

Moving mass at 0 mm stroke

205 g

Pneumatic connection

G1/4

Cover material

Die-cast aluminum, coated

Additional weight per 10 mm stroke

37 g

Note on materials

RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
