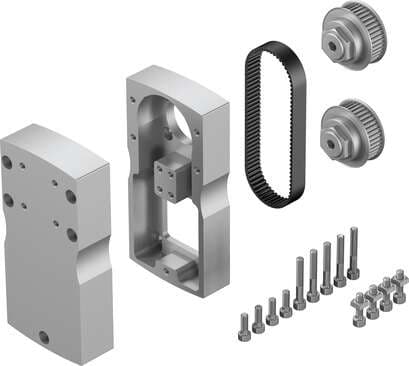

1465541 Festo Axial Kits

Name: 1465541
Brand: Festo

Part#:1465541

Alt. Part#:EAMM-U-145-D100-140A-188

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

parallel kit EAMM-U-145-D100-140A-188 Suitable for electric drives. Size: 145, Assembly position: Any, Gear unit ratio: 1:1, Max. speed: 4000 1/min, Storage temperature: -25 - 60 °C

Product Details

Mass moment of inertia
2270 kgmm²
Gear ratio
1:1
Mounting position
Any
Degree of protection
IP40
Product weight
11800 g
Size
145
Storage temperature
-25 °C ... 60 °C
Transferable torque
50 Nm
Max. rotational speed
4000 1/min
Ambient temperature
-10 °C ... 60 °C
Type code
EAMM-U
Relative air humidity
0 - 95 %
No-load driving torque
2 Nm
Note on materials
RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
