1489954 Festo Process & Media Valves

1489954 on Powermatic Associates
Festo

Part#:1489954

Alt. Part#:VZWP-L-M22C-G1-250-2AP4-40

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

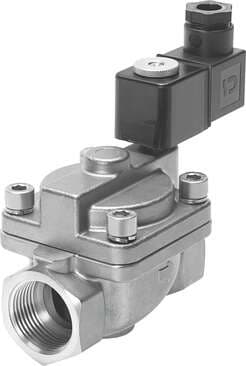

solenoid valve VZWP-L-M22C-G1-250-2AP4-40 Servo-controlled, with piston, G1" connection. Design structure: Pilot-actuated piston poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Coil preferably on top, Mounting type

Product Details

  • Actuation type
    Electrical
  • Fitting connection
    G1
  • Mounting position
    Coil preferably on top
  • Flow direction
    Non-reversible
  • Coil characteristics
    110 V AC: 50/60 Hz, initial power 10.5 VA, holding power 8.0 VA
  • Duty cycle
    100%
  • Flow rate Kv
    11.5 m³/h
  • Material number of housing
    CW617N
  • Material number of screw
    1.4301
  • Nominal width
    25 mm
  • Manual override
    None
  • Differential pressure
    0.5 bar
  • Symbol
    00992974
  • Leak rate to EN 12266-1
    A
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Degree of protection
    IP65
  • Type code
    VZWP
  • Sealing principle
    Soft
  • Type of mounting
    Line installation
  • Valve function
    2/2, closed, monostable
  • Permissible voltage fluctuations
    +/- 10 %
  • Temperature of medium
    -10 °C ... 80 °C
  • Seals material
    NBR
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Design
    Pilot-controlled piston poppet valve
  • Electrical connection
    Form A Rectangular design
  • Nominal pressure of fitting PN
    40
  • Insulation class
    H
  • Medium pressure
    0.5 bar ... 40 bar
  • Ambient temperature
    -10 °C ... 35 °C
  • On switching time
    130 ms
  • Material of screws
    High-alloy stainless steel
  • Product weight
    1400 g
  • Medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
  • Type of control
    Pilot-controlled
  • Max. viscosity
    22 mm²/s
  • Standard nominal flow rate
    12250 l/min
  • Switching time off
    300 ms
  • Housing material
    Cast brass
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
