1491835 Festo Process & Media Valves

1491835 on Powermatic Associates
Festo

Part#:1491835

Alt. Part#:VZWD-L-M22C-M-G18-25-V-1P4-22

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

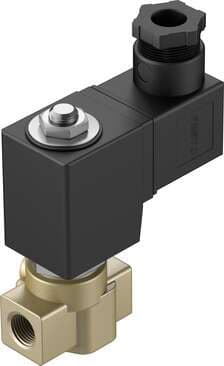

solenoid valve VZWD-L-M22C-M-G18-25-V-1P4-22 Directly actuated, G1/8" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

Product Details

  • Mounting position
    Any
  • Valve function
    2/2, closed, monostable
  • Nominal pressure of fitting PN
    100
  • Insulation class
    H
  • Temperature of medium
    -10 °C ... 80 °C
  • On switching time
    20 ms
  • Material number of housing
    CW617N
  • Type code
    VZWD
  • Sealing principle
    Soft
  • Fitting connection
    G1/8
  • Medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
  • Reset method
    Mechanical spring
  • Medium pressure
    0 bar ... 22 bar
  • Standard nominal flow rate
    170 l/min
  • Flow rate Kv
    0.16 m³/h
  • Seals material
    FPM
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Electrical connection
    Form A Rectangular design
  • Nominal width
    2.5 mm
  • Duty cycle
    100%
  • Symbol
    00992979
  • Ambient temperature
    -10 °C ... 35 °C
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Degree of protection
    IP65
  • Design
    Directly controlled poppet valve
  • Type of mounting
    Line installation
  • Flow direction
    Non-reversible
  • Coil characteristics
    24 V DC: 11.0 W
  • Type of control
    Direct
  • Leak rate to EN 12266-1
    A
  • Housing material
    Cast brass
  • Actuation type
    Electrical
  • Manual override
    None
  • Differential pressure
    0 bar
  • Permissible voltage fluctuations
    +/- 10 %
  • Max. viscosity
    22 mm²/s
  • Switching time off
    18 ms
  • Product weight
    550 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
