1491869 Festo Process & Media Valves
Part#:1491869
Alt. Part#:VZWD-L-M22C-M-N14-20-V-1P4-15
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

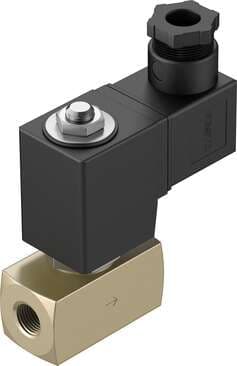

solenoid valve VZWD-L-M22C-M-N14-20-V-1P4-15 Directly actuated, NPT1/4" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Flow direction Non-reversible
- Insulation class H
- Reset method Mechanical spring
- Max. viscosity 22 mm²/s
- Leak rate to EN 12266-1 A
- On switching time 25 ms
- Material number of housing CW614N
- Actuation type Electrical
- Type of mounting Line installation
- Manual override None
- Duty cycle 100%
- Temperature of medium -10 °C ... 80 °C
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 350 g
- Mounting position Any
- Nominal width 2 mm
- Nominal pressure of fitting PN 50
- Symbol 00992979
- Standard nominal flow rate 140 l/min
- Flow rate Kv 0.13 m³/h
- Seals material FPM
- Design Directly controlled poppet valve
- Sealing principle Soft
- Electrical connection Form A Rectangular design
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
- Permissible voltage fluctuations +/- 10 %
- Medium pressure 0 bar ... 15 bar
- Degree of protection IP65
- Type code VZWD
- Fitting connection 1/4 NPT
- Valve function 2/2, closed, monostable
- Differential pressure 0 bar
- Coil characteristics 24 V DC: 6.8 W
- Type of control Direct
- Ambient temperature -10 °C ... 35 °C
- Switching time off 10 ms
- Housing material Brass
- Corrosion resistance class (CRC) 1 - Low corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
