1492003 Festo Process & Media Valves

Name: 1492003
Brand: Festo

Part#:1492003

Alt. Part#:VZWD-L-M22C-M-G14-60-V-3AP4-4

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

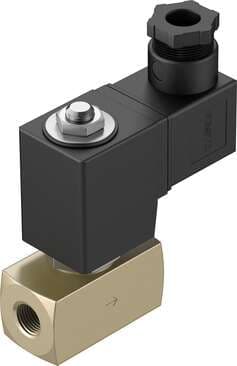

solenoid valve VZWD-L-M22C-M-G14-60-V-3AP4-4 Directly actuated, G1/4" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

Product Details

Mounting position
Any
Type of mounting
Line installation
Insulation class
F
Permissible voltage fluctuations
+/- 10 %
Duty cycle
100%
Standard nominal flow rate
430 l/min
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
CE marking (see declaration of conformity)
As per EU low voltage directive
Actuation type
Electrical
Valve function
2/2, closed, monostable
Nominal pressure of fitting PN
100
Max. viscosity
22 mm²/s
Ambient temperature
-10 °C ... 35 °C
Housing material
Brass
Corrosion resistance class (CRC)
1 - Low corrosion stress
Design
Directly controlled poppet valve
Fitting connection
G1/4
Manual override
None
Differential pressure
0 bar
Reset method
Mechanical spring

Temperature of medium

-10 °C ... 80 °C

Switching time off

18 ms

Degree of protection

IP65

Type code

VZWD

Sealing principle

Soft

Nominal width

6 mm

Medium

Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request

Coil characteristics

230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA

Type of control

Direct

Medium pressure

0 bar ... 4 bar

Leak rate to EN 12266-1

Material number of housing

CW614N

Product weight

600 g

Electrical connection

Form A Rectangular design

Flow direction

Non-reversible

Symbol

00992979

Flow rate Kv

0.4 m³/h

On switching time

20 ms

Seals material

FPM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
