1492120 Festo Process & Media Valves

Name: 1492120
Brand: Festo

Part#:1492120

Alt. Part#:VZWF-B-L-M22C-G12-135-1P4-10-R1

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

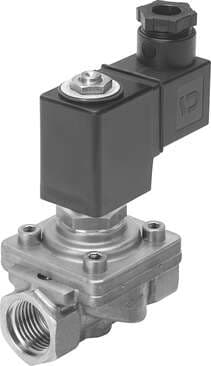

solenoid valve VZWF-B-L-M22C-G12-135-1P4-10-R1 force pilot operated, G1/2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line install

Product Details

Fitting connection
G1/2
Manual override
None
Permissible voltage fluctuations
+/- 10 %
Flow rate Kv
2.5 m³/h
Switching time off
180 ms
Product weight
1000 g
Material number of screw
1.4301
Sealing principle
Soft
Mounting position
Magnet, upright
Valve function
2/2, closed, monostable
Nominal pressure of fitting PN
40
Differential pressure
0 bar
Temperature of medium
-10 °C ... 80 °C
Housing material
Cast stainless steel
Degree of protection
IP65
Actuation type
Electrical
Nominal width
13.5 mm
Flow direction
Non-reversible
Ambient temperature
-10 °C ... 35 °C
Max. viscosity
22 mm²/s

On switching time

130 ms

Seals material

NBR

Type code

VZWF

Type of mounting

Line installation

Medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request

Symbol

00992976

Medium pressure

0 bar ... 10 bar

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Material of screws

High-alloy stainless steel

Design

Diaphragm valve Force pilot operated

Electrical connection

Form A Rectangular design

Coil characteristics

24 V DC: 11.0 W

Leak rate to EN 12266-1

Standard nominal flow rate

2660 l/min

Material number of housing

1.4581

Corrosion resistance class (CRC)

3 - High corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1492120 Related Documents

1492120 DataSheet.pdf

Manufacturer warranty

1492120 Festo
