1492124 Festo Process & Media Valves

1492124 on Powermatic Associates
Festo

Part#:1492124

Alt. Part#:VZWF-L-M22C-G112-400-1P4-10-R1

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

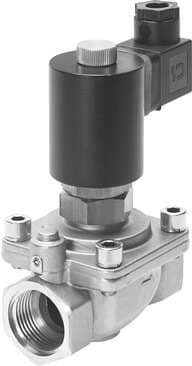

solenoid valve VZWF-L-M22C-G112-400-1P4-10-R1 force pilot operated, G11/2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line install

Product Details

  • Actuation type
    Electrical
  • Nominal width
    40 mm
  • Flow direction
    Non-reversible
  • Symbol
    00992976
  • Standard nominal flow rate
    23500 l/min
  • Material of screws
    High-alloy stainless steel
  • Type code
    VZWF
  • Mounting position
    Magnet, upright
  • Medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
  • Medium pressure
    0 bar ... 10 bar
  • Ambient temperature
    -10 °C ... 35 °C
  • Switching time off
    1140 ms
  • Material number of housing
    1.4581
  • Degree of protection
    IP65
  • Type of mounting
    Line installation
  • Fitting connection
    G1 1/2
  • Nominal pressure of fitting PN
    40
  • Coil characteristics
    24 V DC: 30.0 W
  • Temperature of medium
    -10 °C ... 80 °C
  • On switching time
    620 ms
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Product weight
    4500 g
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Design
    Diaphragm valve Force pilot operated
  • Valve function
    2/2, closed, monostable
  • Differential pressure
    0 bar
  • Max. viscosity
    22 mm²/s
  • Housing material
    Cast stainless steel
  • Material number of screw
    1.4301
  • Sealing principle
    Soft
  • Electrical connection
    Form A Rectangular design
  • Manual override
    None
  • Permissible voltage fluctuations
    +/- 10 %
  • Leak rate to EN 12266-1
    A
  • Flow rate Kv
    22.5 m³/h
  • Seals material
    NBR
  • CE marking (see declaration of conformity)
    as per EU pressure equipment directive

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
