1492143 Festo Process & Media Valves
Part#:1492143
Alt. Part#:VZWF-B-L-M22C-G38-135-V-1P4-10
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

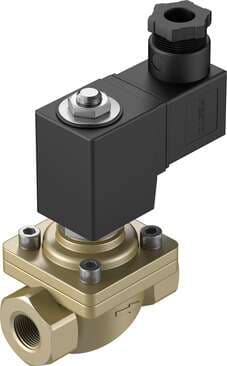

solenoid valve VZWF-B-L-M22C-G38-135-V-1P4-10 force pilot operated, G3/8" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line installa
Product Details
- Actuation type Electrical
- Electrical connection Form A Rectangular design
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Permissible voltage fluctuations +/- 10 %
- Temperature of medium -10 °C ... 80 °C
- Standard nominal flow rate 2350 l/min
- Material number of housing CW617N
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Type code VZWF
- Mounting position Magnet, upright
- Nominal width 13.5 mm
- Nominal pressure of fitting PN 40
- Coil characteristics 24 V DC: 11.0 W
- Max. viscosity 22 mm²/s
- On switching time 130 ms
- Seals material FPM
- Product weight 1000 g
- Sealing principle Soft
- Valve function 2/2, closed, monostable
- Differential pressure 0 bar
- Leak rate to EN 12266-1 A
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material number of screw 1.4301
- Type of mounting Line installation
- Manual override None
- Symbol 00992976
- Ambient temperature -10 °C ... 35 °C
- Switching time off 180 ms
- Material of screws High-alloy stainless steel
- Design Diaphragm valve Force pilot operated
- Fitting connection G3/8
- Flow direction Non-reversible
- Medium pressure 0 bar ... 10 bar
- Flow rate Kv 2.2 m³/h
- Housing material Cast brass
- Degree of protection IP65
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
