1492188 Festo Process & Media Valves

Name: 1492188
Brand: Festo

Part#:1492188

Alt. Part#:VZWF-L-M22C-N112-400-E-1P4-10-R1

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

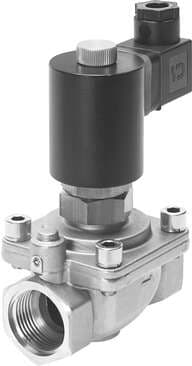

solenoid valve VZWF-L-M22C-N112-400-E-1P4-10-R1 force pilot operated, NPT11/2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line ins

Product Details

Nominal width
40 mm
Type code
VZWF
Design
Diaphragm valve Force pilot operated
Electrical connection
Form A Rectangular design
Differential pressure
0 bar
Coil characteristics
24 V DC: 30.0 W
Leak rate to EN 12266-1
A
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Product weight
4500 g
CE marking (see declaration of conformity)
as per EU pressure equipment directive
Actuation type
Electrical
Mounting position
Magnet, upright
Nominal pressure of fitting PN
40
Permissible voltage fluctuations
+/- 10 %
Flow rate Kv
22.5 m³/h
Switching time off
1140 ms
Seals material
EPDM
Sealing principle
Soft
Fitting connection
1 1/2 NPT
Valve function
2/2, closed, monostable

Flow direction

Non-reversible

Max. viscosity

22 mm²/s

Temperature of medium

-10 °C ... 80 °C

Material number of housing

1.4581

Material number of screw

1.4301

Symbol

00992976

Ambient temperature

-10 °C ... 35 °C

Standard nominal flow rate

23500 l/min

Housing material

Cast stainless steel

Corrosion resistance class (CRC)

3 - High corrosion stress

Type of mounting

Line installation

Manual override

None

Medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request

Medium pressure

0 bar ... 10 bar

On switching time

620 ms

Material of screws

High-alloy stainless steel

Degree of protection

IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
