1492220 Festo Process & Media Valves

Name: 1492220
Brand: Festo

Part#:1492220

Alt. Part#:VZWF-L-M22C-G112-400-2AP4-10-R1

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

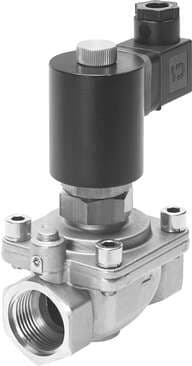

solenoid valve VZWF-L-M22C-G112-400-2AP4-10-R1 force pilot operated, G11/2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line instal

Product Details

Actuation type
Electrical
Fitting connection
G1 1/2
Manual override
None
Medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
Coil characteristics
110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA
Ambient temperature
-10 °C ... 35 °C
Sealing principle
Soft
Differential pressure
0 bar
Temperature of medium
-10 °C ... 80 °C
Flow rate Kv
22.5 m³/h
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Seals material
NBR
Material number of housing
1.4581
Corrosion resistance class (CRC)
3 - High corrosion stress
Type code
VZWF
Mounting position
Magnet, upright
Type of mounting
Line installation
Nominal pressure of fitting PN
40
Symbol
00992976
Standard nominal flow rate
23500 l/min

Housing material

Cast stainless steel

Material number of screw

1.4301

Design

Diaphragm valve Force pilot operated

Electrical connection

Form A Rectangular design

Valve function

2/2, closed, monostable

Permissible voltage fluctuations

+/- 10 %

Medium pressure

0 bar ... 10 bar

Switching time off

1140 ms

Material of screws

High-alloy stainless steel

Nominal width

40 mm

Flow direction

Non-reversible

Max. viscosity

22 mm²/s

Leak rate to EN 12266-1

Degree of protection

IP65

On switching time

620 ms

Product weight

4500 g

CE marking (see declaration of conformity)

as per EU pressure equipment directive As per EU low voltage directive

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
